1.DMS Series Electronic Sensor1.jpg

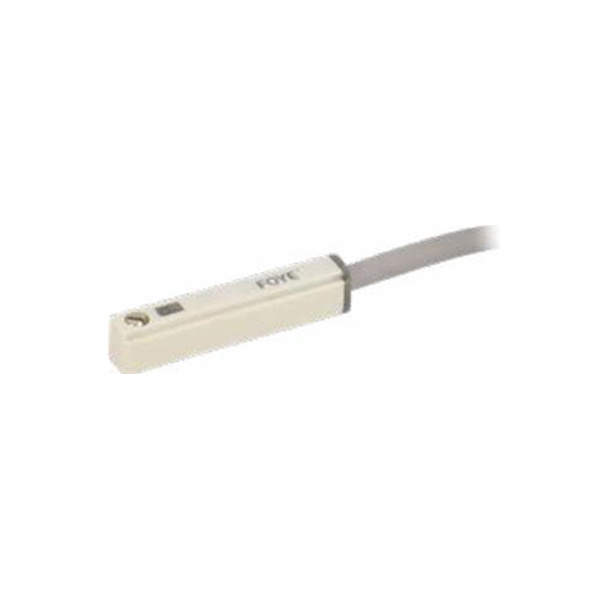

1.DMS Series Electronic Sensor2.jpg

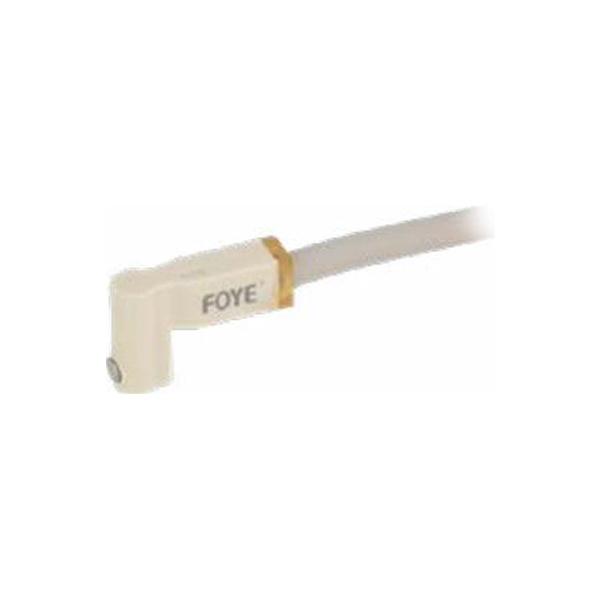

1.DMS Series Electronic Sensor3.jpg

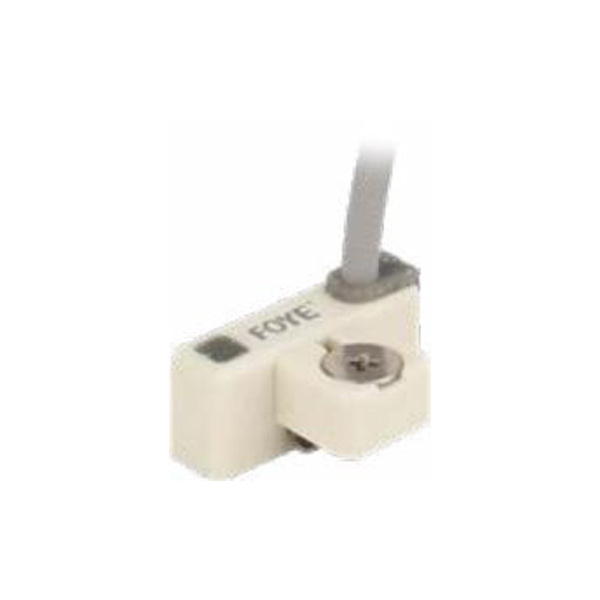

1.DMS Series Electronic Sensor4.jpg

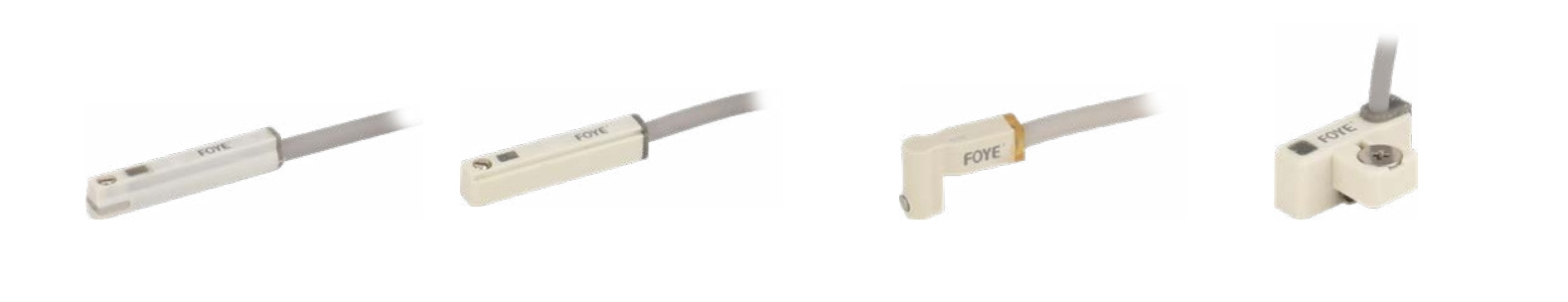

FDMS Series Electronic Sensor

[Note 1]Industry type A06 has no J type available.
[Note 2] industry type A05, A06 have no three-wire type available.
[Note 3] industry type A05, A06 have no M8, M12 quick male connector available.
[Note 4]General type J type,industry type A05,A06 have no waterproof type available;the whole series M08, M12 quick pubic connector have no waterproof type available,industry type A06 already has waterproof function.
[Note 5] Industry codes A05 do not have high temperature types available.
[Note6] A05\A06 type only have two-wire type.
In addition: M08. M12 quick public connector matching female connector need to be ordered separately.

    Contact us
    product details
    1

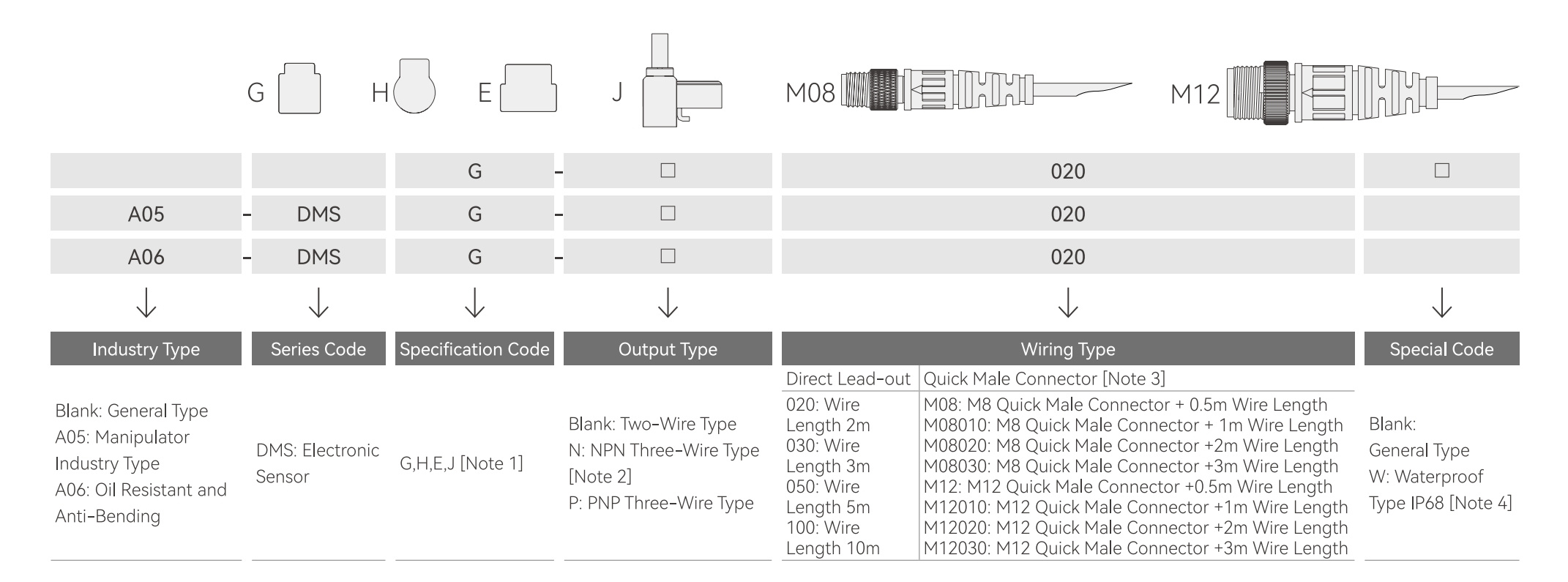

    Finished Product Order Code

    2
    [Note 1]Industry type A06 has no J type available.
    [Note 2] industry type A05, A06 have no three-wire type available.
    [Note 3] industry type A05, A06 have no M8, M12 quick male connector available.
    [Note 4]General type J type,industry type A05,A06 have no waterproof type available;the whole series M08, M12 quick pubic connector have no waterproof type available,industry type A06 already has waterproof function.
    In addition: M08. M12 quick public connector matching female connector need to be ordered separately.

    DMS Product Specifications

    Items

    DMS: Electronic Sensor

    Model

    Two-Wire Type [Note]

    NPN Three-Wire Type

    PNP Three-Wire Type

    Voltage

    10V~28V DC

    5V~30V DC

    Maximum Laser-ON Current

    2.5mA~100mA

    30V/200mA Max.

    Maximum Contact Capacity

    2.8W Max

    6.0W Max

    Internal Consumption Current

    3mA Max.

    5mA Max.

    Internal Residual Voltage

    3.5V Max.

    0.7V Max.

    Leakage Current

    0.06mA Max.

    0.01mA Max.

    Maximum Switching Frequency

    1000Hz

    Impact Resistance

    50G

    Protection Circuit

    Power Polarity Reverse Protection, Surd Absorption Protection

    Operating Temperature

    -10℃~70℃

    Protection Level

    General Type, Manipulator Industry Type:lP64 Waterproof Type, Oil Resistant and Anti-Bending:IP68

    Specifications

    CE Certification、RoHS
    [Note] A05\A06 type only have two-wire type.

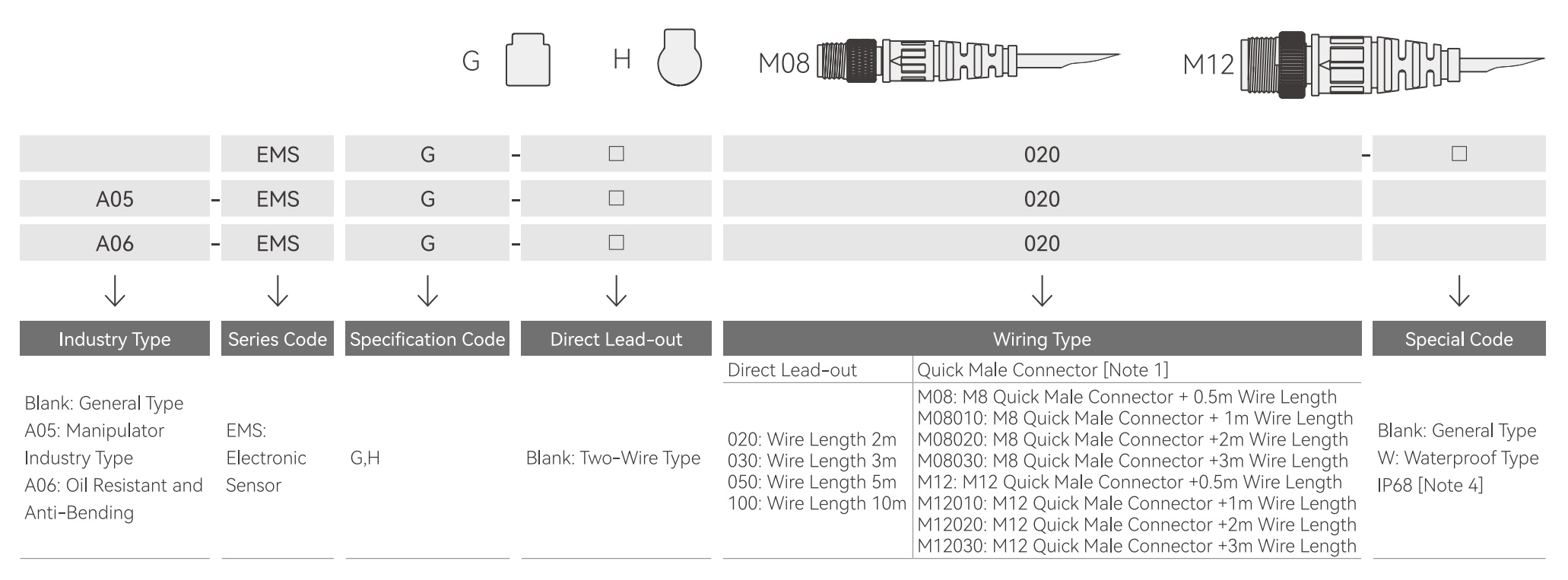

    Finished Product Order Code

    3
    [Note 1] industry codes A05, A06 do not have M8, M12 quick male connectors available.
    [Note 2] Industry codes A05, A06 do not have waterproof types available; industry code A06 already has waterproof function.
    In addition: M08. M12 quick public connector matching female connector need to be ordered separately.

    EMS Product Specifications

    Items

    EMS: Electronic Sensor

    Model

    Two-Wire Type

    Voltage

    10V~28V DC

    Maximum Laser-ON Current

    2.5mA~100mA

    Maximum Contact Capacity

    2.8W Max.

    Internal Consumption Current

    3mA Max.

    Internal Residual Voltage

    3.5V Max.

    Leakage Current

    0.06mA Max.

    Maximum Switching Frequency

    1000Hz

    Impact Resistance

    50G

    Protection Circuit

    Power Polarity Reverse Protection, Surge Absorption Protection

    Operating Temperature

    -10℃ ~70℃

    Protection Level

    General Type, Manipulator Industry Type: lP64 Waterproof Type, Oil Resistant and Anti-Bending: IP68

    Specifications

    CE Certification, RoHS

    Notes

    Overheat Protection

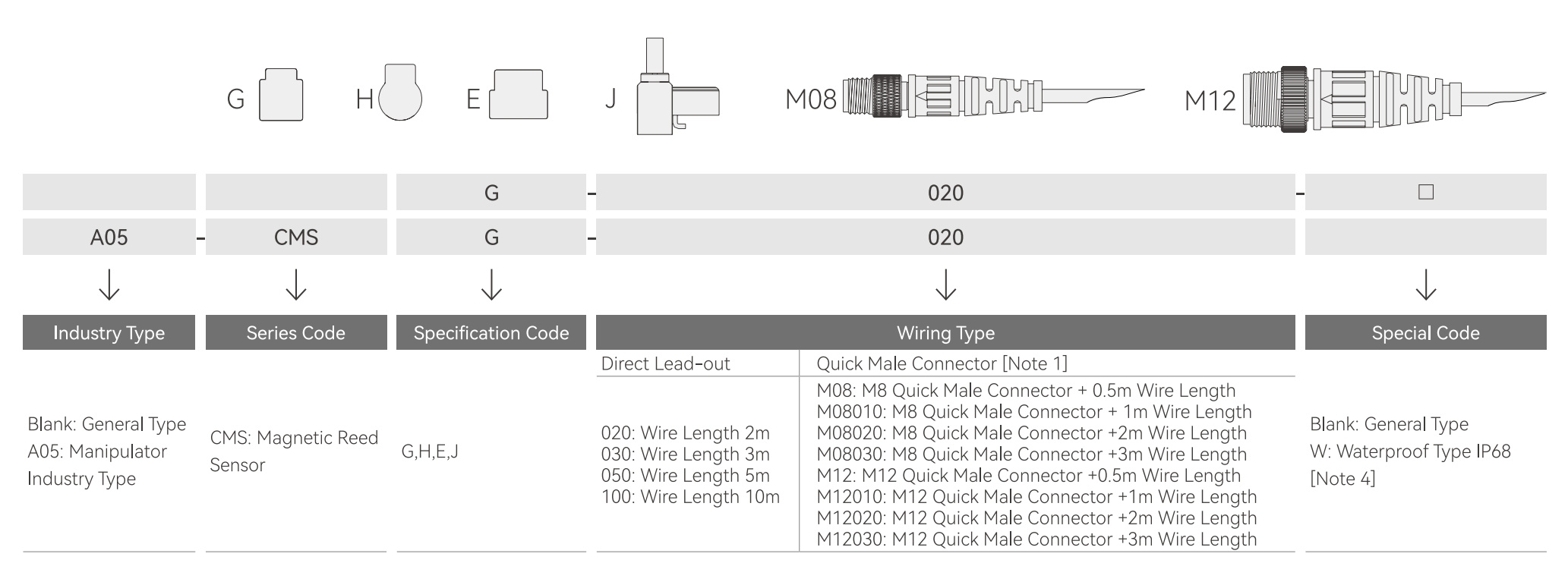

    Finished Product Order Code

    4
    [Note 1] Industry codes A05 do not have M08, M12 quick male connectors available.
    [Note 2] Industry codes A05 do not have high temperature types available.
    In addition: M08, M12 quick public connector matching female connector need to be ordered separately.

    CMS Product Specifications

    Items

    CMS: Magnetic Reed Sensor

    Model

    Two-Wire General Type

    Two-Wire High Temperature Type

    Voltage

    5V~240V AC/DC

    Maximum Laser-ON Current

    100mA

    Maximum Contact Capacity

    10W Max.

    Internal Consumption Current

    None

    Internal Residual Voltage

    2.5V Max.@100mA DC

    None

    Leakage Current

    None

    Maximum Switching Frequency

    200Hz

    Impact Resistance

    50G

    Protection Circuit

    None

    Operating Temperature

    -10℃ ~70℃

    /-10℃~125℃

    Protection Level

    IP64

    Specifications

    CE Certification、 RoHS
