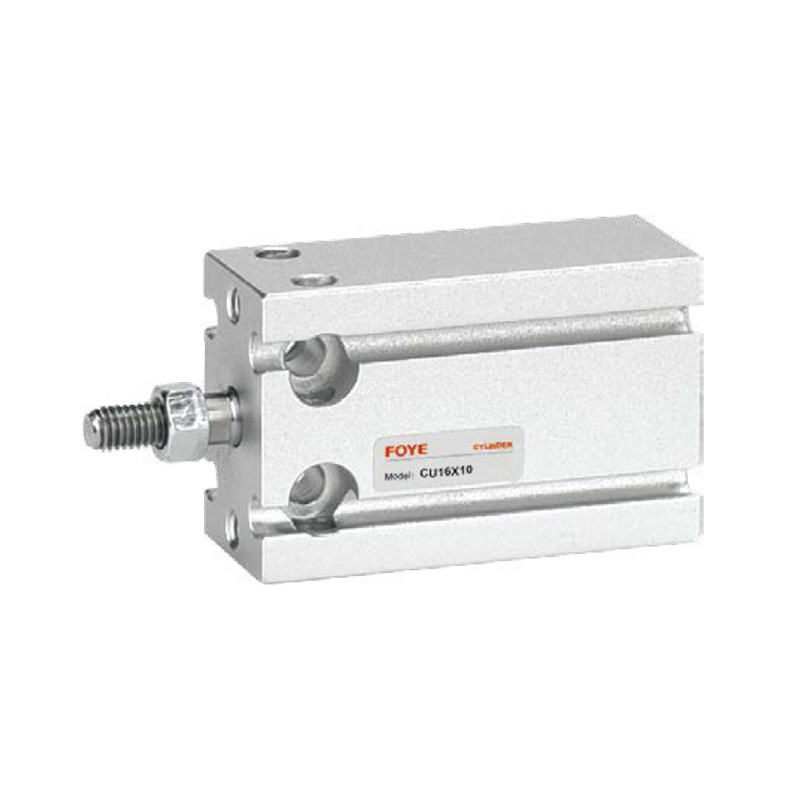

FCU Series Free-Installation Cylinder/Single-Rod Double-Acting
Symbols

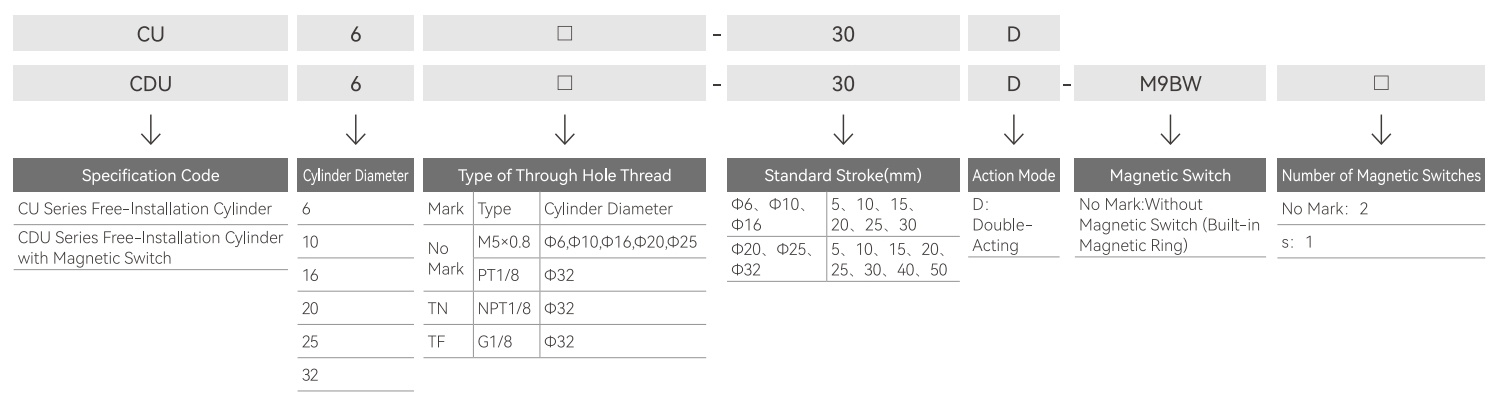

Finished Product Order Code

Specifications
|
Cylinder Diameter(mm) |
6 |
10 |
16 |
20 |
25 |
32 |
|
Fluid Used |
Air |
|||||
|
Guaranteed Pressure Resistance |
1.05MPa |
|||||
|
Maximum Operating Pressure |
0.7MPa |
|||||
|
Minimum Operating Pressure |
0.12MPa |
0.06MPa |
0.05MPa |
|||
|
Environment and Fluid Temperature |
Without Magnetic Switch:-10℃ ~70CWith Magnetic Switch: -10℃ ~60℃ (But Not Frozen) |
|||||
|
Oil Supply |
No Oil Supply |
|||||
|
Piston Speed |
50~500mm/s |
|||||
|
Cushion |
Cushion Pad |
|||||
|
Rod End Thread |
External Thread |
|||||
|
Stroke Length Tolerance |
+1.0 0 |
|||||
Stroke
| Cylinder Diameter (mm) | Standard Stroke(mm) |
| 6、10、16 | 5、10、15、20、25、30 |
| 20、25、32 | 5、10、15、20、25、30、40、50 |

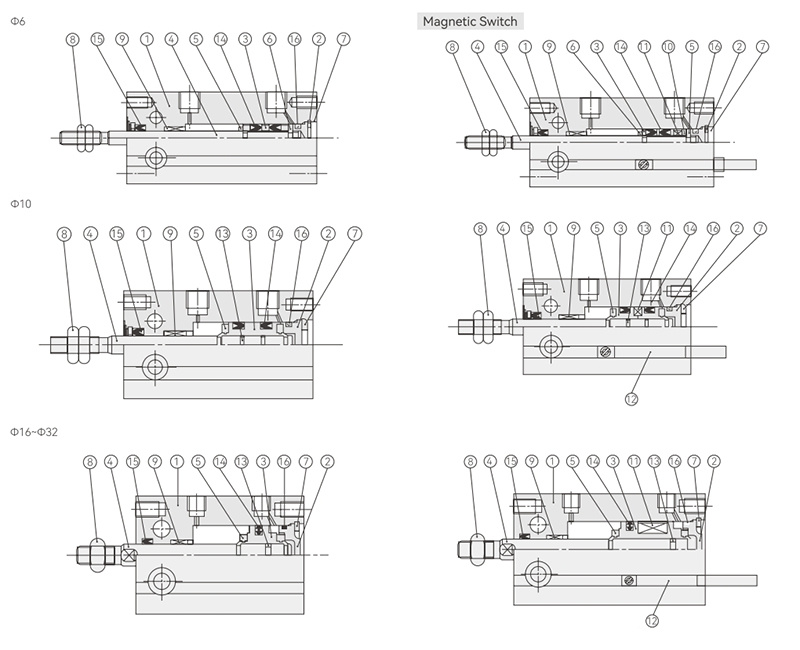

Internal Structure and Main Component Materials

|
No. |
Name |
Material |
Notes |
|
1 |
Cylinder Tube |
Aluminum Alloy |
Hard Anodizing |
|
2 |
Cylinder Cover at No Rod Side |
Brass |
Ф6~Ф10,Electroless Nickel Plating |
|
Aluminum Alloy |
Ф16~Ф32,Chromate |
||
|
3 |
Piston |
Brass |
Ф6 |
|
Aluminum Alloy |
Ф10~Ф32,Chromate |
||
|
4 |
Piston Rod |
Stainless Steel |
|
|
5 |
Cushion Pad A |
Polyurethane |
|
|
6 |
Cushion Pad B |
Polyurethane |
|
|
7 |
Elastic Retaining Ring |
Carbon Tool Steel |
Phosphate Film |
|
8 |
Rod End Nut |
Carbon Steel |
Chromate |
|
9 |
Guide Sleeve |
Bearing Alloy |
|
|
10 |
Magnetic Ring Seat |
Brass |
Ф6 |
|
11 |
Magnetic Ring |
- |
|
|
12 |
Magnetic Switch |
- |
|
|
13 |
Piston Static Seal Ring |
NBR |
|
|
※14 |
Piston Seal Ring |
||
|
※15 |
Rod Seal Ring |
||
|
※16 |
Static Seal Ring |
|
Cylinder Diameter (mm) |
Assembly Mode |
Content |
|
10 |
FCU10D-PS |
The above serial numbers⑭ ⑮ ⑯ are a set |
|
16 |
FCU16D-PS |
|
|
20 |
FCU20D-PS |
|
|
25 |
FCU25D-PS |
|
|
32 |
FCU32D-PS |
|
Cylinder Diameter (mm) |
A |
A' |
B |
C |
D |
E |
GA |
GB |
H |
J |
K |
L |
MM |
NN |
P |
Q |
QA |
|
6 |
7 |
- |
13 |
22 |
3 |
7 |
15 |
10 |
13 |
10 |
17 |
- |
M3x0.5 |
M3x0.5 Depth 5 |
3.2 |
- |
- |
|
10 |
10 |
- |
15 |
24 |
4 |
7 |
16.5 |
10 |
16 |
11 |
18 |
- |
M4x0.7 |
M3x0.5 Depth 5 |
3.2 |
- |
- |
|
16 |
11 |
12.5 |
20 |
32 |
6 |
7 |
Note)16.5 |
11.5 |
16 |
14 |
25 |
5 |
M5x0.8 |
M4x0.7 Depth 6 |
4.5 |
4 |
8 |
|
20 |
12 |
14 |
26 |
40 |
8 |
9 |
19 |
12.5 |
19 |
16 |
30 |
6 |
M6x1.0 |
M5x0.8 Depth 8 |
5.5 |
9 |
4.5 |
|
25 |
15.5 |
18 |
32 |
50 |
10 |
10 |
21.5 |
13 |
23 |
20 |
38 |
8 |
M8x1.25 |
M5x0.8 Depth 8 |
5.5 |
9 |
4.5 |
|
32 |
19.5 |
22 |
40 |
62 |
12 |
11 |
23 |
12.5 |
27 |
24 |
48 |
10 |
M10x1.25 |
M6x1.0 Depth9 |
6.6 |
13.5 |
4.5 |
|
Cylinder Diameter (mm) |
R |
T |
Without Magnetic Switch |
With Magnetic Switch |
||
|
S |
Z |
S |
Z |
|||
|
6 |
7 |
6 Depth 4.8 |
33 |
46 |
33 |
46 |
|
10 |
9 |
6 Depth 5 |
36 |
52 |
36 |
52 |
|
16 |
12 |
7.6 Depth 6.5 |
30 |
46 |
40 |
56 |
|
20 |
16 |
9.3 Depth 8 |
36 |
55 |
46 |
65 |
|
25 |
20 |
9.3 Depth 9 |
40 |
63 |
50 |
73 |
|
32 |
24 |
11 Depth 11.5 |
42 |
69 |
52 |
79 |
