FACQ Series - With Guide Rod Type

·Implementing with JIS Standards, with double guide rod structure;
·The cylinder body and front cover are fixed with a C-shaped retaining ring , the back cover is riveted , and the piston and piston rod are riveted , compact and reliable;
·The inner diameter of the cylinder body is ground , wear-resistant and durable;
·The front cover guide distance is lengthened ,and the guiding performance is good;
·compact structure can effectively save installation space;
·The periphery of the cylinder body is equipped with sensor slots , making sensor installation convenient;
·Double guide rod anti - rotation structure , with good bending resistance and torsion resistance , can withstand larger motion load and lateral load.

product details

Symbols

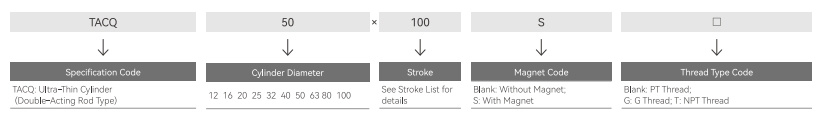

Finished Product Order Code

Specifications

Inner Diameter (mm)	1 2	16	20	25	32	40	50	63	80	100
Mode of operation	Double-Acting Type
working Medium	Air (filtered through a Filter Element with a pore size smaller than 40um)
operating pressure Range	0 . 15 ~ 1 . 0Mpa(22 ~ 145psi)
Guaranteed pressure Resistance	1 . 5Mpa(215psi)
operating Temperature (℃)	- 20 ~ 70
operating speed Range (mm	30 ~ 500
S)
stroke Tolerance Range mm	+1.0 0
cushion Type	Bumper pad
pipe Diameter [Note 1]	M5XO. 8				PT1/8		PT1/4		PT3/8
Non-rotation Accuracy [Note 2]	±0 . 2°		±0 . 1 5°

[Note 1] PT Thread , G Thread and NPT Thread are available for pipe Thread.

Note 2] Non-rotation accuracy refers to the angle that the cylinder fixing plate can rotate when the cylinder is fully retracted.

Stroke

Inner Diameter

standard stroke

Maximum stroke

Intermediate stroke Range

(mm)

1 5

100

(mm)

12 1 6

●

1 ~ 29

20 25

●

1 ~ 49

32 40

●

100

1~ 99

50 63 80 1 00

●

100

5 … 99

[Note] The intermediate stroke range outside the standard stroke is modified from the previous standard stroke , and its external dimensions are the external dimensions of the previous

standard stroke cylinder· For example , a non -standard stroke cylinder with a stroke of23 is modified from a standard cylinder with a standard stroke of25 , and its dimensions are the same. please contact our company for other special strokes.

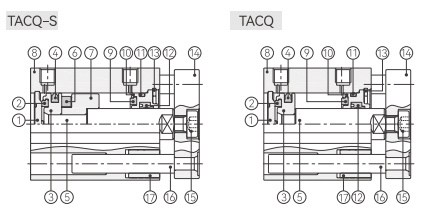

Internal Structure and Main Component Materials

No.	Name	Material	No.	Name	Material
1	Rear Cover	Aluminum Alloy	10	Front Cover	Aluminum Alloy
2	Bumper Pad (Ring)	NBR	11	0-Ring	NBR
3	Piston	Aluminum Alloy	12	Front Cover0-Ring	NBR
4	Piston0-Ring	NBR	13	C-shaped Retaining Ring	Spring Steel
5	Piston Rod	S45C Hard Chrome Grinding Rod	14	Fixed Plate	Aluminum Alloy
6	Magnet	Sintered Neodymium Iron Boron	15	Hexagon Socket Bearing Cap Screw	Medium Carbon Steel or Low Alloy Steel
7	Magnet Seat	Aluminum Alloy	15	Hexagon Socket Bearing Cap Screw	Medium Carbon Steel or Low Alloy Steel
8	Body	Aluminum Alloy	16	Guide Rod	Stainless Steel
9	Bumper Pad (Ring)	NBR	17	Sliding Bushing	Brass

Installation and Use

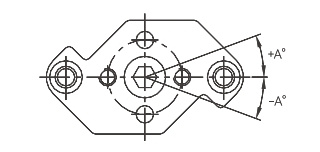

1. The TACQ series cylinder with double guide rods has an anti-rotation function.When using, make sure to control the non-rotation accuracy of the cylinder fixing plate within the allowable range.

Inner Diameter(mm)	12.16	20.25,32.40.50.63.80.100
Non-Rotation Accuracy	±0.2°	±0.15°

2. Please strictly comply with the limit requirements of the rotation torque of the cylinder fixing plate. Use beyond the limit range will cause cylinder wear or shorten the service life.

Inner Diameter/Stroke	5	10	15	20	25	30	35	40	45	50	75	100
12	0.11	0.1	0.08	0.07	0.07	0.06	/-	/-	/-	/-	/-	/-
16	0.15	0.12	0.11	0.10	0.09	0.08	/-	/-	/-	/-	/-	/-
20	0.37	0.32	0.28	0.25	0.23	0.21	0.19	0.18	0.17	0.16	/-	/-
25	0.40	0.35	0.31	0.28	0.25	0.23	0.21	0.20	0.18	0.17	/-	/-
32	0.66	0.59	0.53	0.49	0.45	0.42	0.39	0.36	0.34	0.32	0.25	0.20
40	1.06	0.96	0.88	0.81	0.75	0.70	0.65	0.61	0.58	0.55	0.43	0.36
50	/-	1.70	1.56	1.45	1.35	1.26	1.19	1.12	1.06	1.01	0.80	0.67
63	/-	3.90	3.62	3.37	3.15	2.96	2.80	2.65	2.51	2.39	1.92	1.61
80	/-	7.44	6.98	6.56	6.20	5.87	5.57	5.31	5.07	4.84	3.98	3.37
100	/-	11.85	11.19	10.61	10.08	9.60	9.17	8.77	8.41	8.07	6.73	5.77

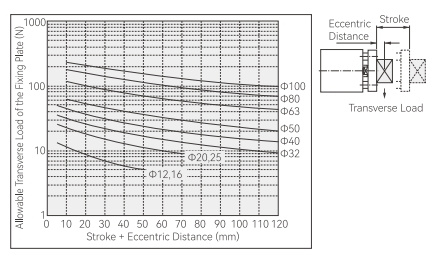

3. Please strictly comply with the limit range of the transverse load on the cylinder fixing plate. Use beyond the limit range will cause damage to the cylinder or shorten the service life.

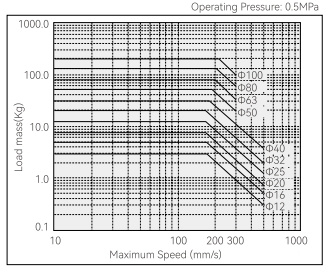

4. Please strictly comply with the limit range of load mass and maximum speed. Use beyond the limit range will cause excessive impact and damage to the cylinder or shorten the life.

5. Please note the following when installing:

5.1 Do not put your hand in the gap between the fixing plate and the cylinder body, otherwise it is very likely to cause harm to the human body when the piston rod retracts.

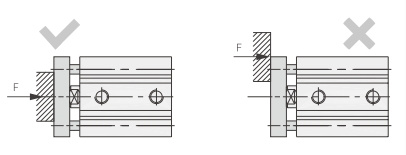

5.2 The external force acting on the fixing plate should be as concentric as possible with the piston rod to avoid generating extra torque and causing damage to the cylinder;

5.3 Installing the jig on the fixing plate must be conducted when the cylinder is in the retracted state, and do not apply the installation torque on the guide rod.

5.4 Avoid damaging the moving parts such as the piston rod and guide rod during installation and use, otherwise, it will cause damage to the sealing parts and cause air leakage and poor action.

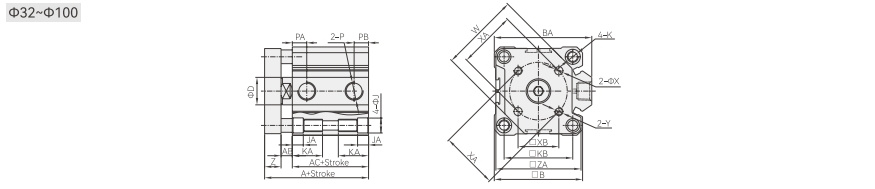

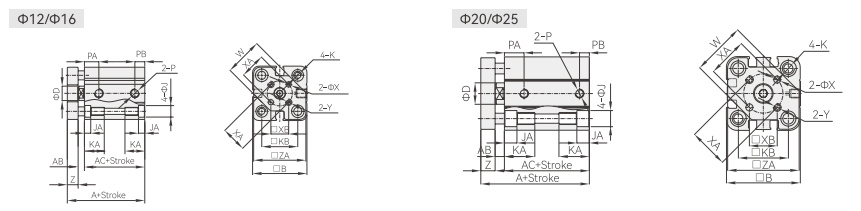

External Specifications

CylinderDiameter/Symbol	A		AB	AC		B	D	J	JA	K	KA	KB	P	PA		PB		W	X	XA	XB	Y	Z	ZA
CylinderDiameter/Symbol	Standard	With Magnet	AB	Standard	With Magnet	B	D	J	JA	K	KA	KB	P	Standard	With Magnet	Standard	With Magnet	W	X	XA	XB	Y	Z	ZA
12	26.5	37.5	3	17.5	28.3	26	6	6	3.5	M4X0.7Through Hole:Ф3.4	11	15.5	M5X0.8	7.5	9	5	7	15	3	10	10	M3X0.5	6	25
16	28	40	3	19	31	30	8	6	3.5	M4X0.7Through Hole:Ф3.4	11	20	M5X0.8	8.5	10	5.5	5.5	21	3	14	14	M3X0.5	6	29
20	32	44	3.5	20.5	32.5	36	10	9	5.5	M6X1.0Through Hole:Ф5.2	17	25.5	M5X0.8	10	10.5	5.5	5.5	26	4	17	17	M4X0.7	8	35
25	35.5	45.5	4.5	23	33	41	12	9	5.5	M6X1.0Through Hole:Ф5.2	17	28	M5X0.8	11.5	11.5	5.5	5.5	30	5	22	22	M5X0.8	8	40

A(with Magnet)	AB	AC		B	BA	D	J	JA	K
A(with Magnet)	AB	St ≤50	St ≥ 70	B	BA	D	J	JA	K
50	6.5	23.5	33.5	45	49.5	16	9	5.5	M6X1.0 Through Hole:Ф5.2
56.5	6.6	30	40	53	57	16	9	5.5	M6X1.0 Through Hole:Ф5.2
60.5	7.5	31	41	64	71	20	10.5	6.5	M8X1.25 Through Hole:Ф6.8
66	8	36	46	77	984	20	14	9	M10X1.5 Through Hole:Ф8.5
77.5	10	43.5	53.5	98	104	25	17	11	M12X1.75 Through Hole:Ф10.4
91	12	53	63	117	123.5	32	17	11	M12X1.75 Through Hole:Ф10.4

Cylinder Diameter/Symbol		KA	KB	P	PA(Standard)	PA(With Magnet)	PB(Standard)	PB(With Magnet)	W	X	XA	XB	Y	Z	ZA
32	St=5	17	34	PT1/8	8	10.5	6.5	7.5	37	5	28	19.8	M5X0.8	10	43
32	St >5	17	34	PT1/8	11	10.5	7.5	7.5	37	5	28	19.8	M5X0.8	10	43
40		17	40	PT1/8	11	11	8	8	46	5	33	23.3	M5X0.8	10	51
50		22	50	PT1/4	10.5	10.5	11	11	58	6	42	29.7	M6X1.0	12	62
63		28.5	60	PT1/4	15	15	10.5	10.5	69	6	50	35.4	M6X1.0	12	75
80		35.5	77	PT3/8	16	16	14	14	90	8	65	46	M8X1.25	14	95
100		35.5	94	PT3/8	20	20	17.5	17.5	113.5	10	80	56.6	M10X1.5	16	114.5

Accessory Order Code List

Cylinder Diameter /Accessory Name	Installation Accessories			Piston Rod End Joint				Swnsor
Cylinder Diameter /Accessory Name	LB	FA/FB	CB	I Joint	Y Joint	F Joint	U Joint	Swnsor
12	F-ACQ12LB	F-ACQ12FA	F-ACQ12CB	F-ACQ12I	F-ACQ12Y	-	F-M5X080U	CMSGDMSG(S)
16	F-ACQ16LB	F-ACQ16FA	F-ACQ16CB	F-ACQ16I	F-ACQ16Y	-	F-M6X100U
20	F-ACQ20LB	F-ACQ20FA	F-ACQ20CB	F-ACQ20I	F-ACQ20Y	F-M8X125F	F-M8X125U
25	F-ACQ25LB	F-ACQ25FA	F-ACQ25CB	F-ACQ25I	F-ACQ25Y	F-M10X125F	F-M10X125U
32	F-ACQ32LB	F-ACQ32FA	F-ACQ32CB	F-ACQ32I	F-ACQ32Y	F-M14X150F	F-M14X150U	CMSJ DMSJ CMSG DMSG(S)
40	F-ACQ40LB	F-ACQ40FA	F-ACQ40CB	F-ACQ32I	F-ACQ32Y	F-M14X150F	F-M14X150U
50	F-ACQ50LB	F-ACQ50FA	F-ACQ50CB	F-ACQ50I	F-ACQ50Y	F-M18X150F	F-M18X150U
63	F-ACQ63LB	F-ACQ63FA	F-ACQ63CB	F-ACQ50I	F-ACQ50Y	F-M18X150F	F-M18X150U
80	F-ACQ80LB	F-ACQ80FA	F-ACQ80CB	F-ACQ80I	F-ACQ80Y	F-M22X150F	-
100	F-ACQ100LB	F-ACQ100FA	F-ACQ100CB	F-ACQ100I	F-ACQ100Y	F-M26X150F	F-M26X150U
125	-	-	-					DMSH(S)/CMSH CMSG DMSG(S)
140	-	-	-
160	-	-	-

Accessory Selection

Cylinder Series / Accessory Category

Installation Accessories

Piston Rod EndJoint[Note 2]

Sensor

CB[Note1]

C(D) MSJ

C(D) MSG(S)

C(D) MSH(S)

FACQ

Internal thread type

Standard Type

●

With-Magnet Type

●

External thread type

Standard Type

●

With-Magnet Type

●

FASQ FATQ

Internal thread type

Standard Type

●

With-Magnet Type

●

External thread type

Standard Type

●

With-Magnet Type

●

FACQD FACQJ

Internal thread type

Standard Type

●

With-Magnet Type

●

External thread type

Standard Type

●

With-Magnet Type

●

Accessory Material

Cylinder Diameter /Accessory Category	Installation Accessories				Piston Rod End Joint
Cylinder Diameter /Accessory Category	LB	FA	FB	CB	I	Y	F	U
12,25	△	●	●	●	▲	▲	▲	▲
20，25	△	●	●	●	▲	▲	▲	▲
32~100	△	●	●	■	▲	■	▲	▲
●--Aluminum Alloy; ▲--S45C; ■--Cast Steel; △--SPCC

[Note 1] CB base comes with corresponding PIN;ACQ125/140/160 cylinders have no installation accessories and connection accessories.

[Note 2] Floating joint (F) and fisheye joint (U) are universal parts.

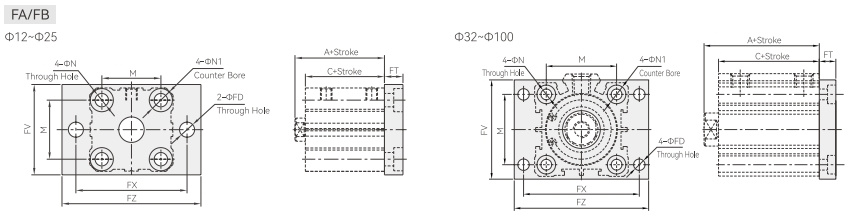

Accessory External Specifications

Cylinder Diameter/Symbol	A[Note 1]				C				M	N	N1	FD	FT	FV	FX	FZ
Cylinder Diameter/Symbol	Standard			With Magnet	Standard			With Magnet
Stroke	≤50	55	≥ 60	With Magnet	≤50	55	≥ 60	With Magnet
12	20.5	-	-	31.5	17	-	-	28	15.5	4.5	7.5	4.5	5.5	25	45	55
16	22	22	-	34	18.5	18.5	-	30.5	20	4.5	7.5	4.5	5.5	30	45	55
20	24	-	34	36	19.5	-	29.5	31.5	25.5	6.5	10.5	6.5	8	39.5	48	60
25	27.5	-	37.5	37.5	22.5	-	32.5	32.5	28	6.5	10.5	6.5	8	42	52	64
32	30	-	40	40	23	-	33	33	34	6.5	10.5	5.5	8	48	56	65
40	36.5	-	46.5	46.5	29.5	-	39.5	39.5	40	6.5	10.5	5.5	8	54	62	72
50	38.5	-	48.5	48.5	30.5	-	40.5	40.5	50	8.5	13.5	6.5	9	67	76	89
63	44	-	54	54	36	-	46	46	60	10.5	16.5	9	10	80	92	108
80	53.5	-	63.5	63.5	43.5	-	53.5	53.5	77	12.5	18.5	11	12	99	116	134
100	65	-	75	75	53	-	63	63	94	12.5	18.5	11	12	117	136	154

[Note 1]The A and C values in the table above are for the ACQ series, For the A and C values of other series, please refer to the relevant content.

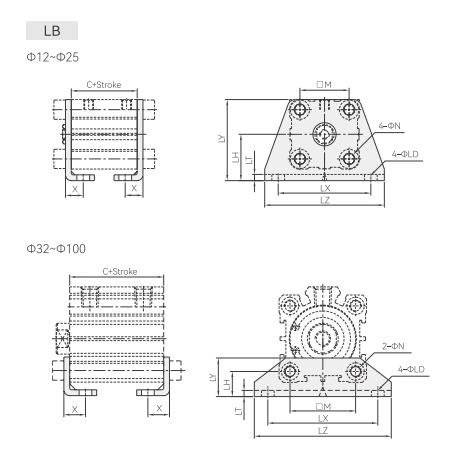

Cylinder Diameter/Symbol	C[Note 1]				M	N	X	LD	LH	LT	LX	LY	LZ
Cylinder Diameter/Symbol	Standard			With Magnet
Stroke	≤50	55	≥ 60	With Magnet
12	17	-	-	28	15.5	4.5	8	4.5	17	2	34	29.5	44
16	18.5	18.5	-	30.5	20	4.5	8	4.5	19	2	38	33.5	48
20	19.5	-	29.5	31.5	25.5	6.5	9.2	6.5	24	3	48	42	62
25	22.5	-	32.5	32.5	28	6.5	10.7	6.5	26	3	52	46	66
32	23	-	33	33	34	6.5	11.2	6.5	13	3	57	20	71
40	29.5	-	39.5	39.5	40	6.5	11.2	6.5	13	3	64	20	78
50	30.5	-	40.5	40.5	50	8.5	12.2	8.5	14	3	79	22	95
63	36	-	46	46	60	10.5	13.7	10.5	16	3	95	26	113
80	43.5	-	53.5	53.5	77	13	16.5	13	20.5	4.5	118	32	140
100	53	-	63	63	94	13	23	13	24	6	137	36	162

[Note 1] The C values in the table above are for the ACQ series. For the C values of other series, please refer to the relevant content.

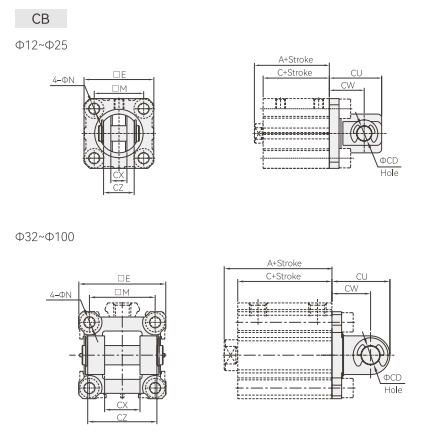

Cylinder Diameter/Symbol	A[Note 1]				C				E	M	N	CD	CU	CW	CX	CZ
Cylinder Diameter/Symbol	Standard			With Magnet	Standard			With Magnet
Stroke	≤50	55	≥ 60	With Magnet	≤50	55	≥ 60	With Magnet
12	20.5	-	-	31.5	17	-	-	28	25	15.5	4.5	5	20	14	5.3	9.8
16	22	22	-	34	18.5	18.5	-AA	30.5	29	20	4.5	5	21	15	6.8	11.8
20	24	-	34	36	19.5	-	29.5	31.5	36	25.5	6.5	8	27	18	8.3	15.8
25	27.5	-	37.5	37.5	22.5	-	32.5	32.5	40	28	6.5	10	30	20	10.3	19.8
32	30	-	40	40	23	-	33	33	45.5	34	6.5	10	30	20	18.3	35.8
40	36.5	-	46.5	46.5	29.5	-	39.5	39.5	53.5	40	6.5	10	32	22	18.3	35.8
50	38.5	-	48.5	48.5	30.5	-	40.5	40.5	64.5	50	8.5	14	42	28	22.3	43.8
63	44	-	54	54	36	-	46	46	77.5	60	10.5	14	44	30	22.3	43.8
80	53.5	-	63.5	63.5	43.5	-	53.5	53.5	98.5	77	12.5	18	56	38	28.3	55.8
100	65	-	75	75	53	-	63	63	117.5	94	12.5	22	67	45	32.3	63.8

[Note 1] The A and C values in the table above are for the ACQ series. For the A and C values of other series, please refer to the relevant content.

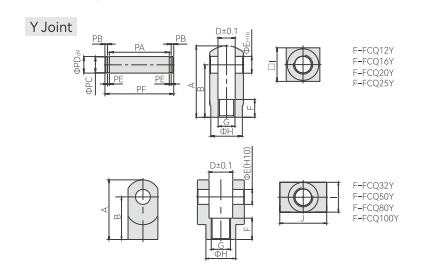

Model/Symbol	A	B	D	E	F	G	H	I	J	PA	PB	PC	PD	PE	PF
F-ACQ12Y	22	16	5.3	5	6	M5X0.8	9	10	-	10.2	1.5	4	5	0.7	14.6
F-ACQ16Y	28	21	6.6	5	11	M6X1.0	11	12	-	12.4	1.5	4	5	0.7	16.8
F-ACQ20Y	34	25	8.3	8	8.5	M8X1.25	15	16	-	16.2	1.5	7	8	0.9	21
F-ACQ25Y	41	30	10.3	10	10.5	M10X1.25	19	20	-	20.2	2	8	10	1.1	26.4
F-ACQ32Y	42	30	18.4	10	16	M14X1.5	22	22	36	36.2	2	8	10	1.1	42.4
F-ACQ50Y	56	40	22.4	14	20	M18X1.5	28	28	44	44.2	2	12	14	1.1	50.4
F-ACQ8OY	71	50	28.4	18	23	M22X1.5	38	38	56	56.2	2	15	18	1.7	63.6
F-ACQ100Y	79	55	32.4	22	24	M26X1.5	44	44	64	64.2	2.5	19	22	1.7	72.6

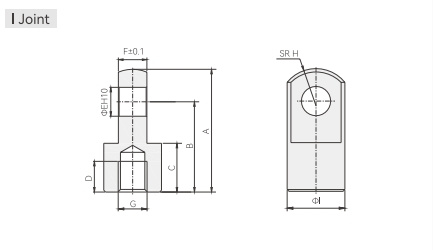

Model/Symbol	A	B	D	E	F	G	H	I
F-ACQ12I	21.5	16	9	5	4.7	M5X0.8	6.3	10
F-ACQ16I	32	25	11	5	6.2	M6X1.0	8.1	12
F-ACQ20I	34	25	13.5	8	7.7	M8X1.25	10.3	16
F-ACQ25I	41	30	16	10	9.7	M10X1.25	12.8	20
F-ACQ32I	42	30	16	10	17.6	M14X1.5	12	22
F-ACQ50I	56	40	20	14	21.6	M18X1.5	16	28
F-ACQ8OI	71	50	23	18	27.6	M22X1.5	21	38
F-ACQ100I	79	55	24	22	31.6	M26X1.5	24	44
