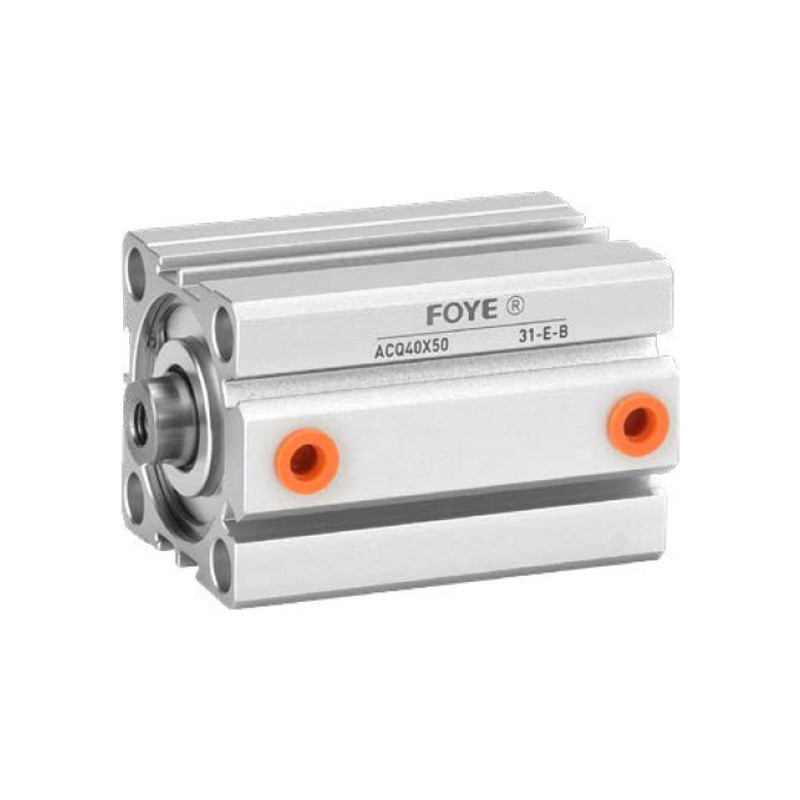

FACQ Series Ultra-Thin Cylinder

·Under high temperature or corrosive conditions, a corresponding high-temperature resistant or corrosion-resistant cylinder should be selected.
·In environments with high humidity, lots of dust, or presence of water droplets.oil dust, and welding slag, appropriate protective measures should be taken for the cylinder.
In low-temperature environments, anti-freezing measures should be taken to prevent the water in the system from freezing.
·Because the front cover and piston of the cylinder are relatively short, the stroke generally should not be too large.
·If the cylinder is disassembled and not used for a long time, attention should be paid to surface rust prevention, dust-proof caps should be added to the intake and exhaust ports, and special attention should be paid: the front and rear covers cannot be disassembled by the user independently.
·Before the cylinder is connected to the pipeline, the dirt inside the pipeline must be cleared to prevent foreign objects from entering the cylinder.
·The medium used in the cylinder should be filtered through a filter element with a pore size smaller than 40um before use.

    Installation and Use (General Purpose)

    ·When the load changes during operation, a cylinder with ample output force should be selected.

    ·Under high temperature or corrosive conditions, a corresponding high-temperature resistant or corrosion-resistant cylinder should be selected.

    ·In environments with high humidity, lots of dust, or presence of water droplets.oil dust, and welding slag, appropriate protective measures should be taken for the cylinder.

    In low-temperature environments, anti-freezing measures should be taken to prevent the water in the system from freezing.

    ·Because the front cover and piston of the cylinder are relatively short, the stroke generally should not be too large.

    ·If the cylinder is disassembled and not used for a long time, attention should be paid to surface rust prevention, dust-proof caps should be added to the intake and exhaust ports, and special attention should be paid: the front and rear covers cannot be disassembled by the user independently.

    ·Before the cylinder is connected to the pipeline, the dirt inside the pipeline must be cleared to prevent foreign objects from entering the cylinder.

    ·The medium used in the cylinder should be filtered through a filter element with a pore size smaller than 40um before use.

    ·During the operation of the cylinder, lateral loads should not exceed the allowable value to maintain the normal working life of the cylinder.

    ·C-shaped retaining ring installation and removal: 1. When disassembling and assembling, use the appropriate pliers (C-shaped retaining ring installation tool)to ensure the same side is open, to avoid the C-shaped retaining ring flying out and causing damage to the human body or surrounding machines.

    ·Ensure that the C-shaped retaining ring is installed in the body ring groove before it can be ventilated.

    Overview of FACQ Series Products

    product description01

    Cylinder Theoretical Output Table

    Cylinder Inner Diameter

    Piston Rod Outer Diameter

    Mode of Operation

    Pressure Area (mm²)

    Air Pressure(MPa)

    0.1

    0.2

    0.3

    0.4

    0.5

    0.6

    0.7

    12

    6

    Push Single-Acting

    113.1

    13.6

    24.9

    36.2

    47.5

    58.9

    70.2

    Pull Single-Acting

    84.8

    8.0

    16.4

    24.9

    33.4

    41.9

    50.4

    Double- Acting

    Push Side

    113.1

    11.3

    22.6

    33.9

    45.2

    56.5

    67.9

    79.2

    Pull Side

    84.8

    8.5

    17.0

    25.4

    33.9

    42.4

    50.9

    59.4

    16

    8

    Push Single-Acting

    201.1

    27.0

    47.1

    67.2

    87.3

    107.4

    127.5

    Pull Single-Acting

    150.8

    17.0

    32.0

    47.1

    62.2

    77.3

    92.4

    Double- Acting

    Push Side

    201.1

    20.1

    40.2

    60.3

    80.4

    100.5

    120.6

    140.7

    Pull Side

    150.8

    15.1

    30.2

    45.2

    60.3

    75.4

    90.5

    105.6

    20

    10

    Push Single-Acting

    314.2

    36.8

    68.2

    99.7

    131.1

    162.5

    193.9

    Pull Single-Acting

    235.6

    21.1

    44.7

    68.2

    91.8

    115.4

    138.9

    Double- Acting

    Push Side

    314.2

    31.4

    62.8

    94.2

    125.7

    157.1

    188.5

    219.9

    Pull Side

    235.6

    23.6

    47.1

    70.7

    94.2

    117.8

    141.4

    164.9

    25

    12

    Push Single-Acting

    490.9

    18.1

    67.2

    116.3

    165.3

    214.4

    263.5

    312.6

    Pull Single-Acting

    377.8

    6.8

    44.6

    82.3

    120.1

    157.9

    195.7

    233.4

    Double- Acting

    Push Side

    490.9

    49.1

    98.2

    147.3

    196.3

    245.4

    294.5

    343.6

    Pull Side

    377.8

    37.8

    75.6

    113.3

    151.1

    188.9

    226.7

    264.4

    32

    16

    Push Single-Acting

    804.2

    27.4

    107.8

    188.3

    268.7

    349.1

    429.5

    510.0

    Pull Single-Acting

    603.2

    7.3

    67.6

    128.0

    188.3

    248.6

    308.9

    369.2

    Double- Acting

    Push Side

    804.2

    80.4

    160.8

    241.3

    321.7

    402.1

    482.5

    563.0

    Pull Side

    603.2

    60.3

    120.6

    181.0

    241.3

    301.6

    361.9

    422.2

    Cylinder Inner Diameter

    Piston Rod Outer Diameter

    Mode of Operation

    Pressure Area (mm²)

    Air Pressure(MPa)

    0.1

    0.2

    0.3

    0.4

    0.5

    0.6

    0.7

    40

    16

    Push Single-Acting

    1256.6

    44.7

    170.3

    296.0

    421.7

    547.3

    673.0

    798.6

    Pull Single-Acting

    1055.6

    24.6

    130.1

    235.7

    341.2

    446.8

    552.3

    657.9

    Double- Acting

    Push Side

    1256.6

    125.7

    251.3

    377.0

    502.7

    628.3

    754.0

    879.6

    Pull Side

    1055.6

    105.6

    211.1

    316.7

    422.2

    527.8

    633.3

    738.9

    50

    20

    Push Single-Acting

    1963.5

    96.3

    292.7

    489.0

    685.4

    881.7

    1078.1

    1274.4

    Pull Single-Acting

    1649.3

    64.9

    229.9

    394.8

    559.7

    724.7

    889.6

    1054.5

    Double- Acting

    Push Side

    1963.5

    196.3

    392.7

    589.0

    785.4

    981.7

    1178.1

    1374.4

    Pull Side

    1649.3

    164.9

    329.9

    494.8

    659.7

    824.7

    989.6

    1154.5

    63

    20

    Push Single-Acting

    3117.2

    141.7

    453.4

    765.2

    1076.9

    1388.6

    1700.3

    2012.1

    Pull Single-Acting

    2803.1

    110.3

    390.6

    670.9

    951.2

    1231.5

    1511.9

    1792.2

    Double- Acting

    Push Side

    3117.2

    311.7

    623.4

    935.2

    1246.9

    1558.6

    1870.3

    2182.1

    Pull Side

    2803.1

    280.3

    560.6

    840.9

    1121.2

    1401.5

    1681.9

    1962.2

    80

    25

    Double- Acting

    Push Side

    5026.5

    502.7

    1005.3

    1508.0

    2010.6

    2513.3

    3015.9

    3518.6

    Pull Side

    4535.7

    453.6

    907.1

    1360.7

    1814.3

    2267.8

    2721.4

    3175.0

    100

    32

    Double- Acting

    Push Side

    7854.0

    785.4

    1570.8

    2356.2

    3141.6

    3927.0

    4712.4

    5497.8

    Pull Side

    7049.7

    705.0

    1409.9

    2114.9

    2819.9

    3524.9

    4229.8

    4934.8

    125

    32

    Double- Acting

    Push Side

    12271.8

    1227.2

    2454.4

    3681.5

    4908.7

    6135.9

    7363.1

    8590.2

    Pull Side

    11467.6

    1146.8

    2293.5

    3440.3

    4587.0

    5733.8

    6880.6

    8027.3

    140

    32

    Double- Acting

    Push Side

    15393.8

    1539.4

    3078.8

    4618.1

    6157.5

    7696.9

    9236.3

    10775.7

    Pull Side

    14589.6

    1459.0

    2917.9

    4376.9

    5835.8

    7294.8

    8753.8

    10212.7

    160

    40

    Double- Acting

    Push Side

    20106.2

    2010.6

    4021.2

    6031.9

    8042.5

    10053.1

    12063.7

    14074.3

    Pull Side

    18849.6

    1885.0

    3769.9

    5654.9

    7539.8

    9424.8

    11309.8

    13194.7

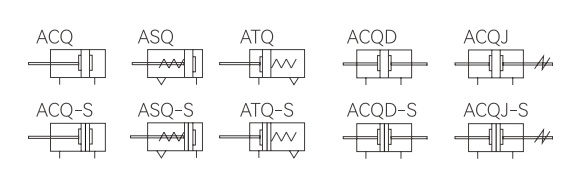

    Symbols

    product description02

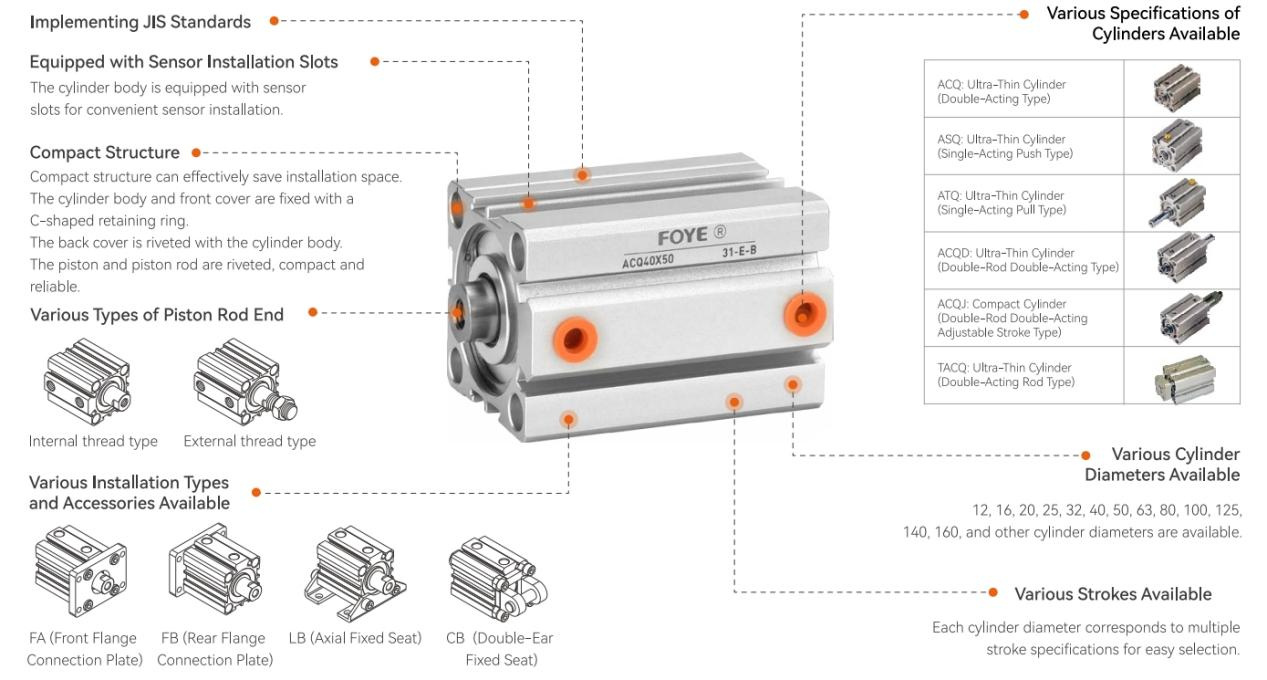

    Product Features

    ·Implementing JIS standards.
    ·The cylinder body and front cover are fixed with a C-shaped retaining ring, the back cover is riveted with the cylinder body, and the piston and piston rod are riveted, compact and reliable.
    ·The inner diameter of the cylinder body is ground, wear-resistant and durable.
    ·The front cover guide distance is lengthened, and the guiding performance is good.
    ·Compact structure can effectively save installation space;
    ·The periphery of the cylinder body is equipped with sensor slots, making sensor installation convenient;
    ·A variety of installation accessories are available for selection.

    Finished Product Order Code

    FACQ

    20

    X

    30

    S

    B

    FACQD

    20

    X

    30

    S

    B

    FACQJ

    20

    X

    30

    30

    S

    B

    Specification Code

    Cylinder Diameter

    Stroke

    Adjustable Stroke

    Magnet Code

    Piston Rod Thread Type

    Fixing Form

    Thread Type Code [Note 2]

    FACQ:Ultra-thin cylinder(double-acting type)

    1 2   1 6   20   25  32   40   50   63  80   1 00

    See Stroke List for details

    NA

    Blank:No Magnet S:With Magnet

    Blank:Internal Thread Type B:External Thread Type

    Blank: No Installation Accessories

    FA: Front Flange Connection Plate

    FB: Rear Flange Connection Plate

    CB: Double-Ear Fixing Seat

    LB: Axial Fixing Seat

    Blank:PT Thread             G: G Thread T: NPT Thread

    FASQ:Ultra-thin Cylinder (Single-acting Push Type)[Note 1]

    1 2   1 6   20   25  32   40   50   63

    FATQ:Ultra-thin cylinder (single-acting pull type)

    FACQD:Ultra-thin cylinder (double-rod double-acting type)

    1 2   1 6   20   25  32   40   50   63  80   1 00

    Blank: No Installation Accessories

    FA: Front Flange Connection Plate

    FB: Rear Flange Connection Plate

    LB: Axial Fixing Seat

    FACQJ:Ultra-thin Cylinder(Double-rod Double-actingAdjustable Stroke Type)

    10 20 30 40 50 75 100

    [Note 1] Single-acting push type refers to the piston rod extending when the air is on,the font spring is compressed,and when the air is of,the piston rod retracts to its original position under the reset force of the spring.
    Single-acting pull type refers to the piston rod retracting when the air is on,the rear spring is compressed,and when the air is off the piston rod extends to its original position under the reset force of the spring..
    [Note 2] When the pipe joint is of M5 thread, this code is blank.

    Specifications

    Inner Diameter(mm)

    12

    16

    20

    25

    32

    40

    50

    63

    80

    100

    Mode of Operation

    Double-Acting Type

    Single-Acting Push Type,Single-Acting Pull Type

    _

    Working Medium

    Air(filtered through a Filter Element with a pore size smaller than 40μm)

    Operating Pressure Range

    Double-Acting Type

    0.15~1.0MPa(22~145psi)

    Single-Acting Type

    0.2~1.0MPa(28~145psi)

    Guaranteed Pressure Resistance

    1.5MPa(215psi)

    Operating Temperature(℃)

    -20~70

    Operating Speed Range(mm/s)

    Double-Acting Type: 30~500,Single-Acting Type: 50~500

    Stroke Tolerance Range mm

    Stroke≤100      Stroke>100

    Cushion Type

    Bumper Pad

    Pipe Diameter [Note 1]

    M5X0.8

    PT1/8

    PT1/4

    PT3/8

    [Note 1] PT Thread, G Thread and NPT Thread are available for Pipe Thread.

    Stroke

    Inner Diameter(mm)

    Standard Stroke

    Maximum Stroke

    12

    Double-Acting

    5 10 15 20 25 30 36 40 45 50

    50

    Single-Acting

    5 10 15 20

    20

    16

    Double-Acting

    5 10 15 20 25 30 35 40 45 50 55 60

    60

    Single-Acting

    5 10 15 20

    20

    20 25

    Double-Acting

    5 10 15 20 25 30 35 40 45 50 60 70 75 80 90 100

    100

    Single-Acting

    5 10 15 20 25 30

    30

    32 40 50 63

    Double-Acting

    5 10 15 20 25 30 35 40 45 50 60 70 75 80 90 100

    100

    Single-Acting

    5 10 15 20 25 30

    80100

     Double-Acting

    5 10 15 20 25 30 35 40 45 50 60 70 75 80 90 100

    100

    [Note]1. Within the allowable stroke range, when the stroke > maximum stroke, it is treated as non-standard:for other special strokes, please contact our company.
    2. Non-standard strokes within the maximum stroke range are modified from the previous standard stroke. and their dimensions are the same as those of the previous standard stroke cylinder. For example. a non-standard stoke cylinder with a stoke of 23 is modified from a standard cylinder with a standard stoke of 25, and its dimensions are the same.

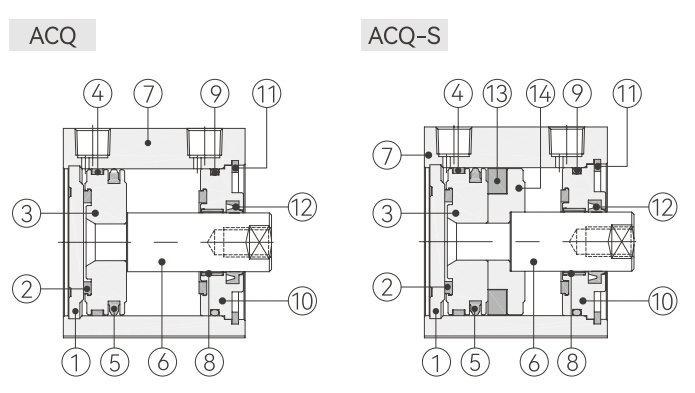

    Internal Structure and Main Component Materials

    product description03

    No.

    Name

    Material

    1

    Rear Cover

    None(φ12,16)/Aluminum Alloy(Others)

    2

    Bumper Pad(Ring)

    TPU(φ12~25)/NBR(Others)

    Piston

    Brass(φ12,16)/Aluminum Alloy(Others)

    4

    Wear-Resistant Pad(Ring)

    None(φ12~32)/Wear-Resistant Material (Others)

    5

    Piston O-Ring

    NBR

    6

    Piston Rod

    S45C Hard Chrome Grinding Rod

    Body

    Aluminum Alloy

    Bushing

    None(φ12~32)/Wear-Resistant Material (Others)

    O-Ring

    NBR

    10

    Front Cover

    Aluminum Alloy

    11

    C-shaped Retaining Ring

    Spring Steel

    12

    Front Cover O-Ring

    NBR

    13

    Magnet

    Sintered Neodymium Iron Boron(φ12~25)/Plastic(Others)

    14

    Magnet Seat

    Brass(φ12,16)/Aluminum Alloy(Others)

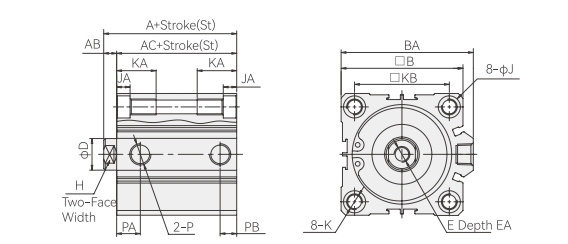

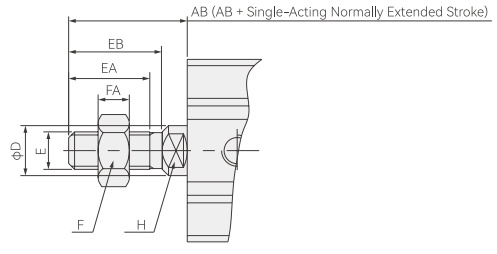

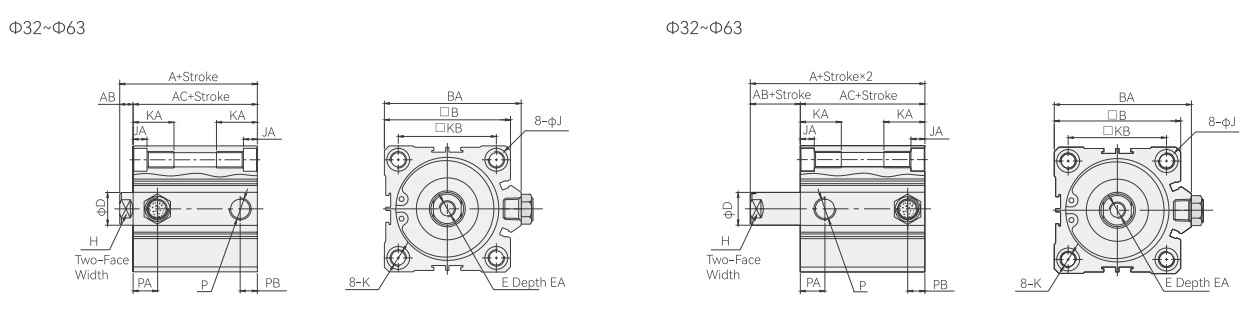

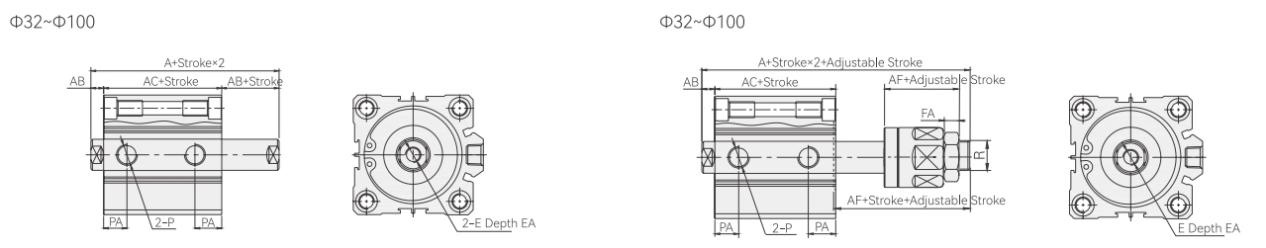

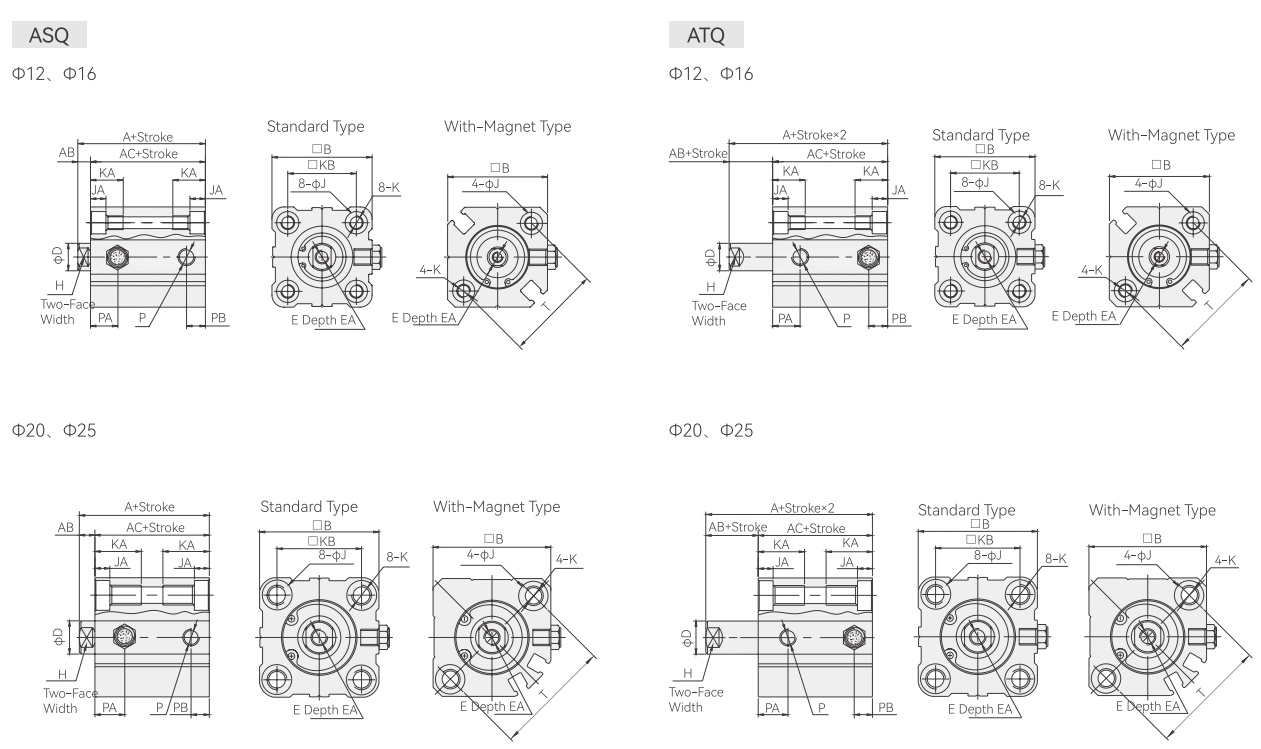

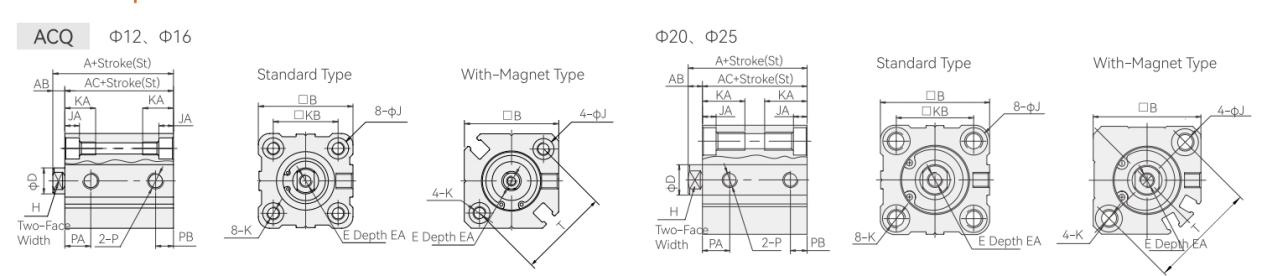

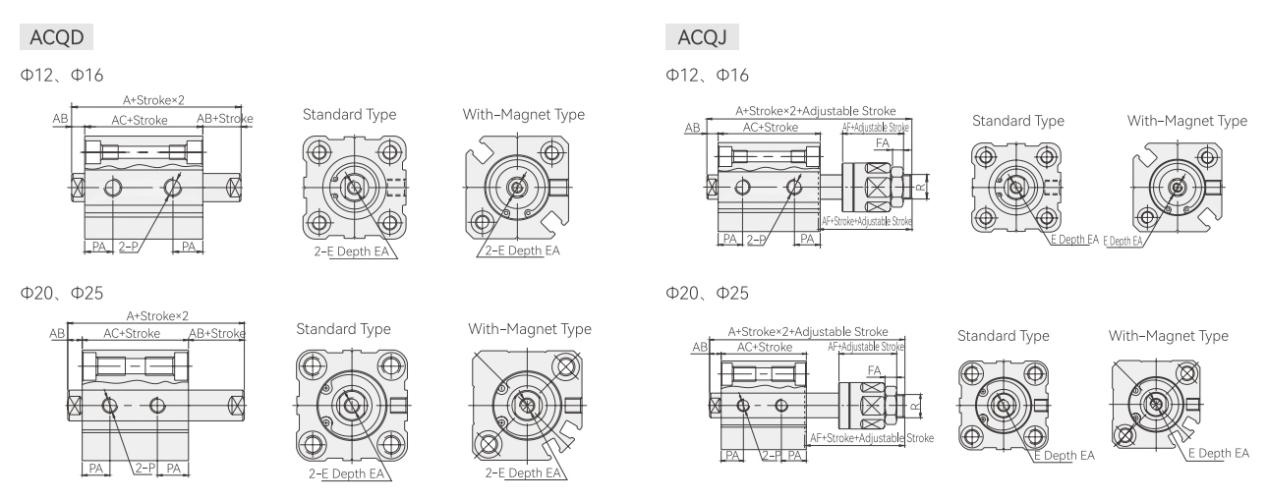

    External Specifications

    product description04

    Type

    Standard Type

    With-Magnet Type

    AB

    B

    D

    E

    EA

    H

    J

    JA

    K

    KA

    KB

    P

    Standard Type

    With-Magnet

    T

    Cylinder Diameter/ Symbol

    A

    AC

    A

    AC

    PA

    PB

    PA

    PB

    Stroke

    St≤50

    St=55

    St≥60

    St≤50

    St=55

    St≥60

    12

    20.5

    -

    17

         -

    -

    31.5

    28

    3.5

    25

    6

    M3×0.5

    5

    6

    3.5

    M4×0.7 Through Hole:φ3.4

    11

    15.5

    M5×0.8

    7.5

    5

    9

    7

    22

    16

    22

    22

    22

    18.5

    18.5

    18.5

    34

    30.5

    3.5

    29

    8

    M4×0.7

    8

    6

    6

    3.5

    M4×0.7 Through Hole:φ3.4

    11

    20

    M5×0.8

    8

    5.5

    9.5

    5.5

    28

    20

    24

    -

    34

    19.5

         -

    29.5

    36

    31.5

    4.5

    36

    10

    M5×0.8

    7

    8

    9

    5.5

    M6×1.0 Through Hole:φ5.2

    17

    25.5

    M5×0.8

    9

    5.5

    9.5

    5.5

    36

    25

    27.5

    37.5

    22.5

         -

    32.5

    37.5

    32.5

    5

    40

    12

    M6×1.0

    12

    10

    9

    5.5

    M6×1.0 Through Hole:φ5.2

    17

    28

    M5×0.8

    11

    5.5

    11

    5.5

    40

    Ф32~Ф100(Stroke≤100)
    product description05

    Cylinder Diameter/Symbol

    A(Standard)

    A(With Magnet)

    AB

    AC(Standard)

    AC(With Magnet)

    B

    BA

    D

    E

    St≤50

    St≥60

    St≤50

    St≥60

    32

    30

    40

    40

    7

    23

    33

    33

    45

    49.5

    16

    M8×1.25

    40

    36.5

    46.5

    46.5

    7

    29.5

    39.5

    39.5

    53

    57

    16

    M8×1.25

    50

    38.5

    48.5

    48.5

    8

    30.5

    40.5

    40.5

    64

    71

    20

    M10×1.5

    63

    44

    54

    54

    36

    46

    46

    77

    84

    20

    M10×1.5

    80

    53.5

    63.5

    63.5

    10

    43.5

    53.5

    53.5

    98

    104

    25

    M16×2.0

    100

    65

    75

    75

    12

    53

    63

    63

    117

    123.5

    32

    M20×2.5

    Cylinder Diameter/Symbol

    EA

    H

    J

    JA

    K

    KA

    KB

    P

    PA(Standard)

    PA(With Magnet)

    PB(Standard)

    PB(With Magnet)

    32

    St=5

    13

    14

    9

    5.5

    M6x1.0 Through Hole:φ5.2

    17

    34

    PT1/8

    7.5

    10.5

    6.5

    7.5

    St>5

    10.5

    7.5

    40

    13

    14

    9

    5.5

    M6x1.0 Through Hole:φ5.2

    17

    40

    PT1/8

    11

    11

    8

    8

    50

    St=5

    15

    17

    10.5

    6.5

    M8x1.25 Through Hole:φ6.8

    22

    50

    PT1/4

    9

    10.5

    9

    10.5

    St >5

    10.5

    10.5

    63

    St≥25

    15

    17

    14

    9

    M10x1.5 Through Hole:φ8.5

    28.5

    60

    PT1/4

    14 (15)

    15

    9.5 (10.5)

    10.5

    St=20

    27

    ST≤15

    Full Thread

    80

    20

    22

    17

    11

    M12×1.75 Through Hole:Φ10.4

    35.5

    77

    PT3/8

    16

    16

    14

    14

    100

    26

    27

    17

    11

    M12×1.75 Through Hole:φ10.4

    35.5

    94

    PT3/8

    20

    20

    17.5

    17.5

    [Note] The non-standard stoke within the maximum stoke range is modified from the previous standard stoke. and its external dimensions are the external dimensions of the previous standard stroke cylinder.
    For example. a non-standard stroke cylinder with a stoke of 55 is modified from a standard cylinder with a standard stoke of 60. and its external dimensions are the same.
    product description06
    product description07

    Cylinder Diameter/Symbol

    A(Standard)

    A(With Magnet)

    AB

    A(Standard)

    A(With Magnet)

    B

    BA

    D

    E

    EA

    Stroke

    5/10

    15/20

    25/30

    5/10

    15/20

    25/30

    5/10

    15/20

    25/30

    5/10

    15/20

    25/30

    12

    25.5

    30.5

    36.5

    41.5

    3.5

    22

    27

    33

    38

    25

    6

    M3×0.5

    6

    16

    27

    32

    -

    39

    44

    -

    3.5

    23.5

    28.5

    -

    35.5

    40.5

    29

    -

    8

    M4×0.7

    8

    20

    29

    34

    39

    41

    46

    51

    4.5

    24.5

    29.5

    34.5

    36.5

    41.5

    46.5

    36

    10

    M5×0.8

    25

    32.5

    37.5

    42.5

    42.5

    47.5

    52.5

    5

    27.5

    32.5

    37.5

    37.5

    42.5

    47.5

    40

    12

    M6×1.0

    12

    32

    35

    40

    45

    45

    50

    55

    7

    28

    33

    38

    38

    43

    48

    45

    49.5

    16

    M8×1.25

    13

    40

    41.5

    46.5

    51.5

    51.5

    56.5

    61.5

    7

    34.5

    39.5

    44.5

    44.5

    49.5

    54.5

    53

    57

    16

    M8×1.25

    13

    50

    48.5

    53.5

    58.5

    58.5

    63.5

    68.5

    8

    40.5

    45.5

    50.5

    50.5

    55.5

    60.5

    64

    71

    20

    M10×1.5

    15

    63

    54

    59

    64

    64

    69

    74

    8

    46

    51

    56

    56

    61

    66

    77

    84

    20

    M10×1.5

    15

    Cylinder Diameter/Symbol

    H

    J

    JA

    K

    KA

    KB

    P

    PA(Standard)

    PA(With  Magnet) PB(Standard)

    PB(With Magnet)

    T

    12

    5

    6

    3.5

    M4×0.7 Through Hole:φ3.4

    11

    15.5

    M5×0.8

    7.5

    9

    5

    7

    22

    16

    3.5

    M4×0.7 Through Hole:φ3.4

    11

    20

    M5X0.8

    8

    9.5

    5.5

    5.5

    28

    20

    8

    5.5

    M6×1.0 Through Hole:φ5.2

    17

    25.5

    M5×0.8

    9.5

    5.5

    5.5

    36

    25

    10

    5.5

    M6×1.0 Through Hole:φ5.2

    17

    28

    M5×0.8

    11

    11

    5.5

    5.5

    40

    32

    14

    5.5

    M6×1.0 Through Hole:φ5.2

    17

    34

    PT1/8

    10.5

    10.5

    7.5

    7.5

    40

    14

    9

    5.5

    M6×1.0 Through Hole:φ5.2

    17

    40

    PT1/8

    11

    11

    8

    8

    50

    17

    10.5

    6.5

    M8×1.25 Through Hole:φ6.8

    22

    50

    PT1/4

    10.5

    10.5

    10.5

    10.5

    63

    17

    14

    9

    M10×1.5 Through Hole:Φ8.5

    28.5

    60

    PT1/4

    15

    15

    10.5

    10.5

    product description08
    product description09

    Cylinder Diameter/Symbol

    A(ACQD)

    A(ACQJ)

    AB

    AC(ACQD)

    AC(ACQJ)

    AF

    E

    EA

    FA

    PA

    R

    Stroke

    Standard Type

    With-Magnet Type

    Standard Type

    With-Magnet Type

    Standard Type

    With-Magnet Type

    Standard Type

    With-Magnet Type

    12

    32.2

    39.4

    45.2

    52.4

    3.5

    25.2

    32.4

    25.2

    32.4

    17

    M3×0.5

    6

    4

    9

    M5×0.8

    16

    33

    43

    50

    60

    3.5

    26

    36

    26

    36

    21

    M4×0.7

    8

    5

    9.5

    M6×1.0

    20

    35

    47

    55

    67

    4.5

    26

    38

    26

    38

    25

    M5×0.8

    7

    6

    9.5

    M8×1.25

    25

    39

    49

    60.5

    70.5

    29

    39

    29

    39

    27

    M6×1.0

    9.5(St=5)/12(St>5)

    6

    11

    M10×1.25

    32

    44.5

    54.5

    64.9

    74.9

    7

    30.5

    40.5

    30.5

    40.5

    28

    M8×1.25

    9.5(St≤10)/13(St>10)

    7

    10

    M12×1.25

    40

    54

    64

    74.5

    84.5

    7

    40

    50

    40

    50

    28

    M8×1.25

    11(St≤10)/13(St>10)

    7

    13

    M12×1.25

    50

    56.5

    66.5

    77

    87

    8

    40.5

    50.5

    40.5

    50.5

    29

    M10×1.5

    12(St≤10)/15(St>10)

    8

    13.5

    M16×1.5

    63

    58

    68

    78.4

    88.4

    8

    42

    52

    42

    52

    29

    M10×1.5

    12(St≤10)/15(St>10)

    8

    14.5(St=5)/16(St>5)

    M16X1.5

    80

    71

    81

    95.8

    105.8

    10

    51

    61

    51

    61

    35.5

    M16×2.0

    14(St≤15)/20(St>15)

    10

    16

    M20×1.5

    100

    84.5

    94.5

    114.3

    124.3

    12

    60.5

    70.5

    60.5

    70.5

    42.5

    M20×2.5

    20(St≤25)/26(St>25)

    13.5

    21

    M27×2.0

    [Note] The dimensions not specified are the same as the standard type.Please refer to the content at the bottom of this page for the dimensions of the external thread type.

    External Thread Type Size

    Cylinder diameter: Ф12~Ф100, stroke ≤ 100
    product description10

    Cylinder Diameter/Symbol

    AB

    D

    E

    EA

    EB

    F

    FA

    H

    12

    14

    6

    M5×0.8

    9

    10

    8

    4

    5

    16

    15.5

    8

    M6×1.0

    10

    11.5

    10

    5

    6

    20

    18.5

    10

    M8×1.25

    12

    13.5

    12

    6

    8

    25

    22.5

    12

    M10×1.25

    15

    17

    17

    6

    10

    32

    28.5

    16

    M14×1.5

    20.5

    23.5

    19

    8

    14

    40

    28.5

    16

    M14×1.5

    20.5

    23.5

    19

    8

    14

    50

    33.5

    20

    M18×1.5

    26

    28.5

    27

    11

    17

    63

    33.5

    20

    M18×1.5

    26

    28.5

    27

    11

    17

    80

    43.5

    25

    M22×1.5

    32.5

    35.5

    32

    13

    22

    100

    43.5

    32

    M26×1.5

    32.5

    35.5

    36

    13

    27

    Leave Your Message
