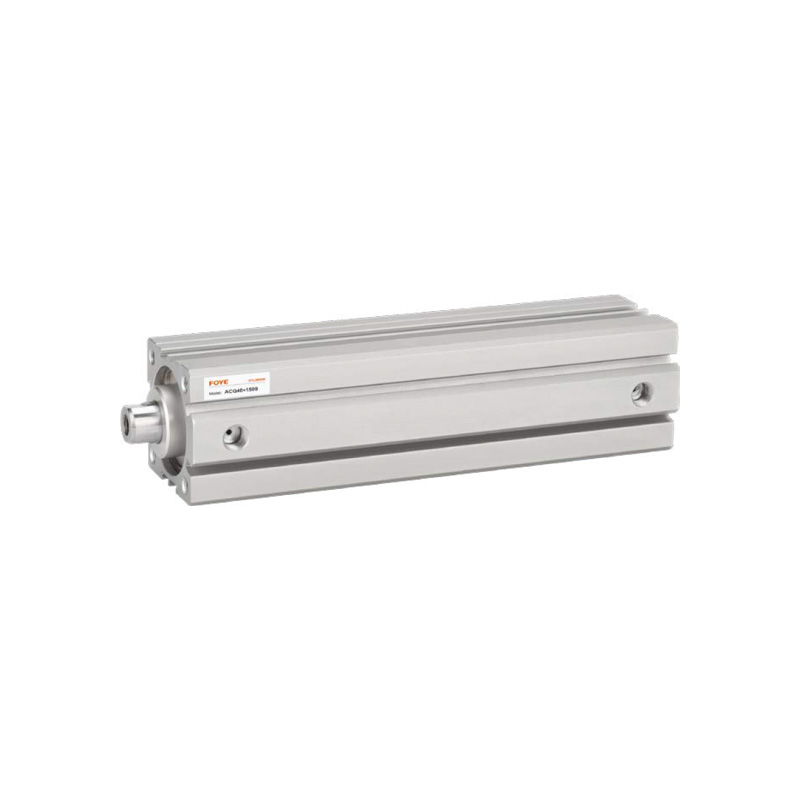

FACQ Series - Long Stroke Series

FACQ

50

X

150

S

B

□

□

FACQD

50

X

150

S

B

□

□

FACQJ

50

X

150

—

30

S

B

□

□

↓

↓

↓

↓

↓

↓

↓

↓

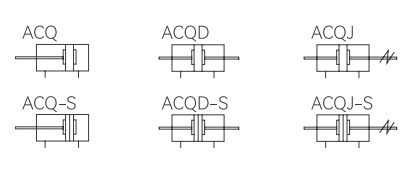

Specification Code

Cylinder Diameter

Stroke

Adjustable Stroke

Magnet Code

Piston Rod Thread Type

Fixing Form

Thread Type Code

ACQ:Ultra-thin cylinder(double-acting type)

32 40 50 63 80 100

See Stroke List for details

NA

Blank: without Magnet;              S:With Magnet

Blank:Internal Thread Type B:External Thread Type

Blank: No Installation Accessories FA: Front Flange Connection Plate

FB: Rear Flange Connection Plate

CB: Double-Ear Fixing Seat

LB: Axial Fixing Seat

Blank:PT Thread

G: G Thread  T: NPT Thread

FACQD:Ultra-thin cylinder (double-rod double-acting type)

Blank: No Installation Accessories

FA: Front Flange Connection Plate

FB: Rear Flange Connection Plate

LB: Axial Fixing Seat

FACQJ:Ultra-thin Cylinder(Double-rod Double-acting Adjustable Stroke Type)

10 20 30 40 50 75 100

Inner Diameter(mm)

32

40

50

63

80

100

Mode of Operation

Double-Acting Type

Working Medium

Air(filtered through a Filter Element with a pore size smaller than 40μm)

Operating Pressure Range

0.15~1.0MPa(22~145psi)

Guaranteed Pressure Resistance

1.5MPa(215psi)

Operating Temperature(℃)

-20~70

Operating Speed Range(mm/s)

30~500

Stroke Tolerance Range mm

Cushion Type

Bumper Pad

Pipe Diameter [Note 1]

PT1/8

PT1/4

PT3/8

Inner Diameter(mm)

Standard Stroke

Maximum Stroke

32 40 50 63 80 100

125 150 175 200 250 300

300

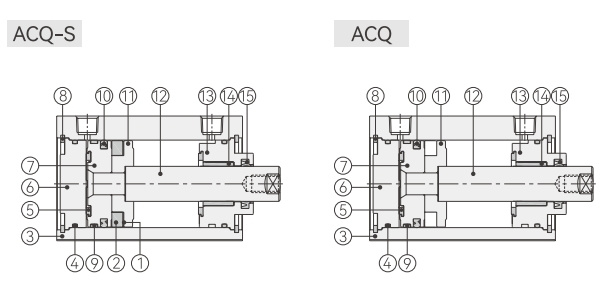

No.

Name

Material

No.

Name

Material

１

Magnet Shim

NBR

９

Wear-Resistant Pad(Ring)

None(φ32)/Wear-Resistant Material  (Others)

2

Magnet

Plastic

10

Piston O-Ring

NBR

3

Body

Aluminum Alloy

11

Magnet Seat

Aluminum Alloy

4

O-Ring

NBR

12

Piston Rod

S45C Hard Chrome Grinding Rod

5

Bumper Pad (Ring)

NBR

13

Front Cover

Aluminum Alloy

6

Rear Cover

Aluminum Alloy

14

Bushing

None(Φ32)/Wear-Resistant Material  (Others)

7

Piston

Aluminum Alloy

15

Front Cover O-Ring

NBR

8

C-shaped Retaining Ring

Spring Steel

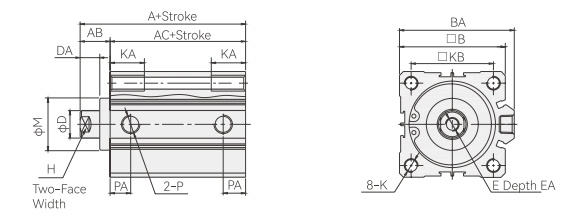

Cylinder Diameter/Symbol

A

AB

AC

B

BA

D

DA

E

EA

H

K

KA

KB

M

P

PA

32

62.5

17

45.5

45

49.5

16

12

M8×1.25

13

14

M6×1.0 Through Hole:Φ5.2

17

34

22

PT1/8

12.5

40

72

17

55

53

57

16

12

M8×1.25

13

14

M6×1.0 Through Hole:Φ5.2

17

40

28

PT1/8

14

50

73.5

18

55.5

64

71

20

13

M10×1.5

15

17

M8×1.25 Through Hole:Φ6.7

22

50

35

PT1/4

14

63

75

18

57

77

84

20

13

M10×1.5

15

17

M10×1.5 Through Hole:Φ8.5

27

60

35

PT1/4

16.5

80

86

20

66

98

104

25

15

M16×2.0

21

22

M12×1.75 Through Hole:Φ10.4

32

77

43

PT3/8

19

100

97.5

22

75.5

117

123.5

32

17

M20×2.5

27

27

M12×1.75 Through Hole:Φ10.4

33

94

59

PT3/8

23

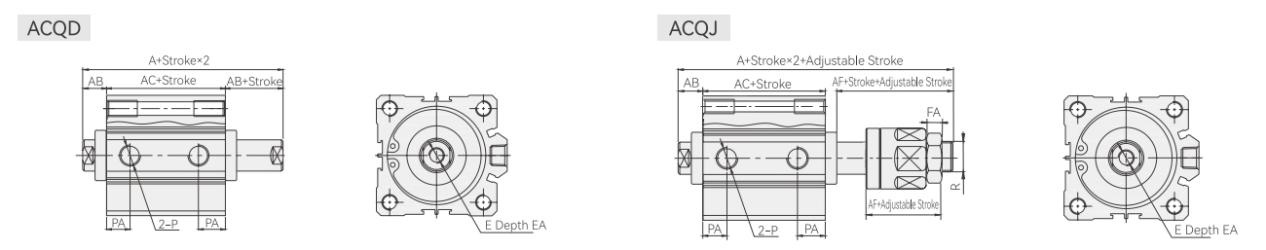

Cylinder Diameter/Symbol

A(ACQD)

A(ACQJ)

AB

AC

AF

EA

FA

PA

R

Stroke

Standard

With Magnet

Standard

With Magnet

Standard

With Magnet

32

79.5

89.5

95.5

105.5

17

45.5

55.5

28

13

7

12.5

M12×1.25

40

89

99

105

115

17

55

65

28

13

７

14

M12×1.25

50

91.5

101.5

107.5

117.5

18

55.5

65.5

29

15

8

14

M16×1.5

63

93

103

109

119

18

57

67

29

15

8

16.5

M16×1.5

80

106

116

126.5

136.5

20

66

76

35.5

21

10

19

M20×1.5

100

119.5

129.5

145

155

22

75.5

85.5

42.5

27

13.5

23

M27×2.0

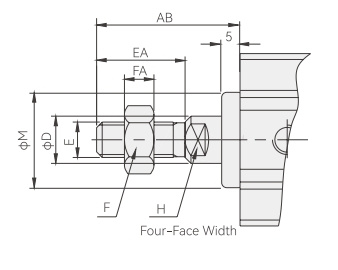

Cylinder Diameter/ Symbol

AB

D

E

EA

FA

F

H

M

32

38.5

16

M14×1.5

23

8

19

14

22

40

38.5

16

M14×1.5

23

8

19

14

28

50

43.5

20

M18×1.5

28

11

27

17

35

63

43.5

20

M18×1.5

28

11

27

17

35

80

53.5

25

M22×1.5

35

13

32

22

43

100

53.5

32

M26×1.5

35

13

36

27

59
