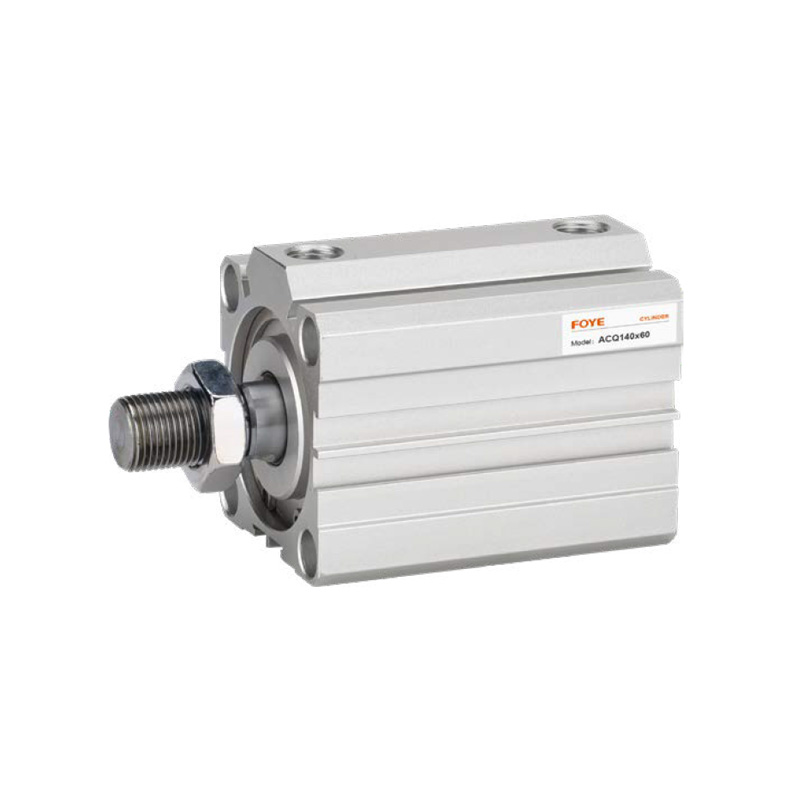

FACQ Series - Large Cylinder Series
Symbols
Finished Product Order Code
|
FACQ |
125 |
X |
30 |
S |
B |
□ |
||
|
FACQD |
125 |
X |
30 |
S |
B |
□ |
||
|
FACQJ |
125 |
X |
30 |
— |
30 |
S |
B |
□ |
|
↓ |
↓ |
↓ |
↓ |
↓ |
↓ |
↓ |
||
|
Specification Code |
Cylinder Diameter |
Stroke |
Adjustable Stroke |
Magnet Code |
Piston Rod Thread Type |
Thread Type Code [Note 2] |
||
|
FACQ:Ultra-thin cylinder(double-acting type) |
125 140 160 |
See Stroke List for details |
NA |
S:With Magnet |
Blank:Internal Thread Type B:External Thread Type |
Blank: PT Thread G: G Thread T: NPT Thread |
||
|
FACQD:Ultra-thin cylinder (double-rod double-acting type) |
||||||||
|
FACQJ:Ultra-thin Cylinder(Double-rod Double-acting Adjustable Stroke Type) |
10 20 30 40 50 75 100 |
Specifications
|
Inner Diameter(mm) |
125 |
140 |
160 |
|
Mode of Operation |
Double-Acting Type |
||
|
Working Medium |
Air(filtered through a Filter Element with a pore size smaller than 40μm) |
||
|
Operating Pressure Range |
0.15~1.0MPa(22~145psi) |
||
|
Guaranteed Pressure Resistance |
1.5MPa(215psi) |
||
|
Operating Temperature(℃) |
-20~70 |
||
|
Operating Speed Range(mm/s) |
30~500 |
||
|
Stroke Tolerance Range |
Stroke≤100 Stroke >100 |
||
|
Cushion Type |
Stroke |
||
|
Pipe Diameter [Note] |
PT3/8 |
||
Stroke
|
Inner Diameter(mm) |
Standard Stroke |
Maximum Stroke |
|
125 |
10 20 30 40 50 75 100 125 150 175 200 250 300 |
300 |
|
140 |
||
|
160 |

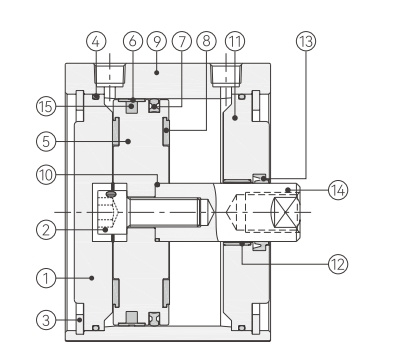

Internal Structure and Main Component Materials
|
No. |
Name |
Material |
|
１ |
Rear Cover |
Aluminum Alloy |
|
2 |
Hexagon Socket Head Cap Screw |
Carbon Steel |
|
３ |
C-shaped Retaining Ring |
Spring Steel |
|
4 |
O-Ring |
NBR |
|
５ |
Piston |
Aluminum Alloy |
|
6 |
Wear-Resistant Ring(Pad) |
Wear-Resistant Material |
|
7 |
Piston O-Ring |
NBR |
|
8 |
Bumper Pad |
NBR |
|
No. |
Name |
Material |
|
9 |
Body |
Aluminum Alloy |
|
10 |
O-Ring |
NBR |
|
11 |
Front Cover |
Aluminum Alloy |
|
12 |
Self-Lubricating Bearing |
Wear-Resistant Material |
|
13 |
Front Cover O-Ring |
NBR |
|
14 |
Piston Rod |
S45C Hard Chrome Grinding Rod |
|
15 |
Magnet |
Rubber |

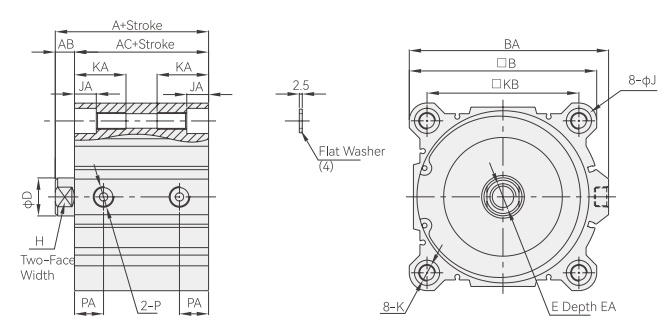

External Specifications
|
Cylinder Diameter/ Symbol |
A |
AB |
AC |
B |
BA |
D |
E |
EA(St≤10) |
EA(St >10) |
H |
J |
JA |
K |
KA |
KB |
P |
PA |
|
125 |
99 |
16 |
83 |
142 |
153 |
32 |
M22×2.5 |
22.5 |
30 |
27 |
21.5 |
18.4 |
M14×2.0 Through Hole:Φ12.4 |
43.5 |
114 |
PT3/8 |
24.5 |
|
140 |
99 |
16 |
83 |
158 |
168 |
32 |
M22×2.5 |
22.5 |
30 |
27 |
21.5 |
18.4 |
M14×2.0 Through Hole:Φ12.4 |
43.5 |
128 |
PT3/8 |
24.5 |
|
160 |
108 |
17 |
91 |
178 |
188 |
40 |
M24×3.0 |
26.5 |
33 |
36 |
24.5 |
21.2 |
M16×2.0 Through Hole:φ14.4 |
49 |
144 |
PT3/8 |
27.5 |
|

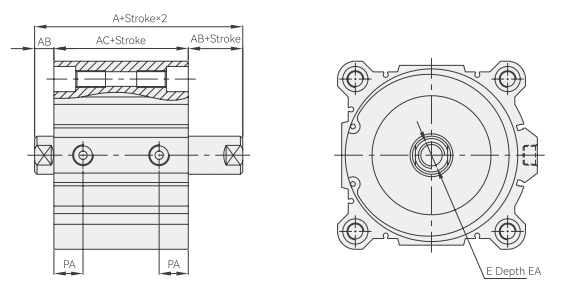

Cylinder Diameter/ Symbol |
A |
AB |
AC |
E |
EA |
PA |
|
|
St≤10 |
St>10 |
||||||
|
125 |
115 |
16 |
83 |
M22×2.5 |
22.5 |
30 |
24.5 |
|
140 |
115 |
16 |
83 |
M22×2.5 |
22.5 |
30 |
24.5 |
|
160 |
125 |
17 |
91 |
M24×3.0 |
26.5 |
33 |
27.5 |
|

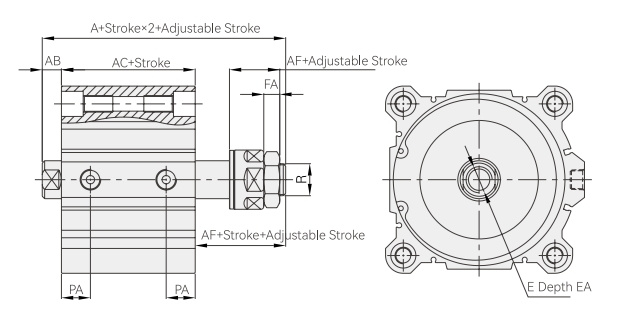

Cylinder Diameter/ Symbol |
A |
AB |
AC |
AF |
E |
EA |
FA |
PA |
R |
|
|
St≤10 |
St>10 |
|||||||||
|
125 |
140.8 |
16 |
83 |
42.5 |
M22×2.5 |
22.5 |
30 |
13.5 |
24.5 |
M27×2.0 |
|
140 |
140.8 |
16 |
83 |
42.5 |
M22×2.5 |
22.5 |
30 |
13.5 |
24.5 |
M27×2.0 |
|
160 |
175.3 |
17 |
91 |
68 |
M24×3.0 |
26.5 |
33 |
18 |
27.5 |
M36×2.0 |

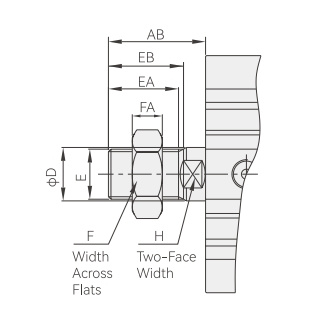

External Thread Type Size
|
Cylinder Diameter/Symbol |
AB |
D |
E |
EA |
EB |
F |
FA |
H |
|
125 |
58 |
32 |
M30X1.5 |
42 |
45 |
46 |
18 |
27 |
|
140 |
58 |
32 |
M30X1.5 |
42 |
45 |
46 |
18 |
27 |
|
160 |
64 |
40 |
M36X1.5 |
47 |
50 |
55 |
21 |
36 |
