01

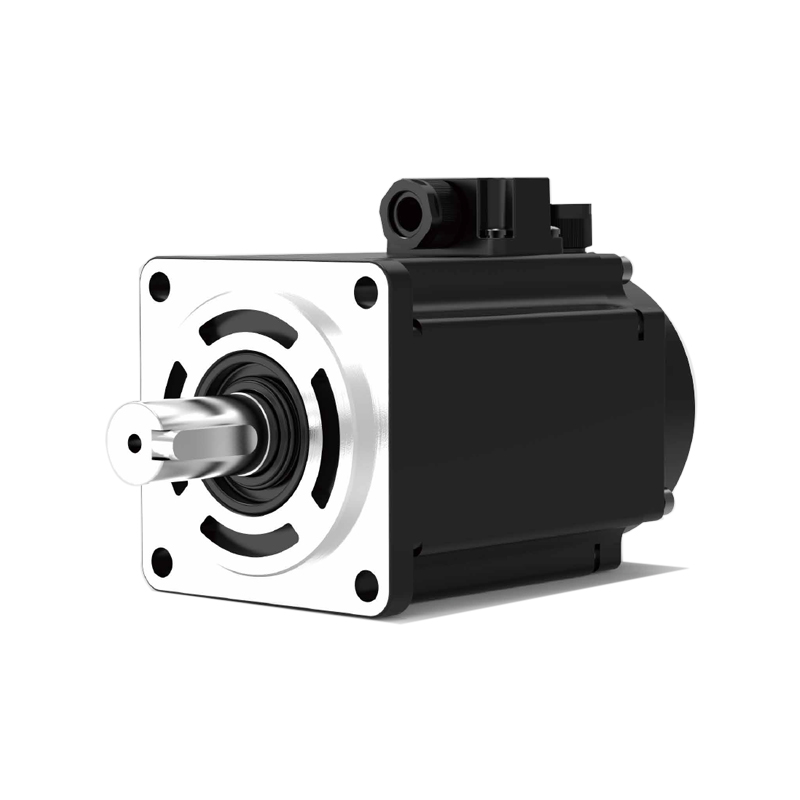

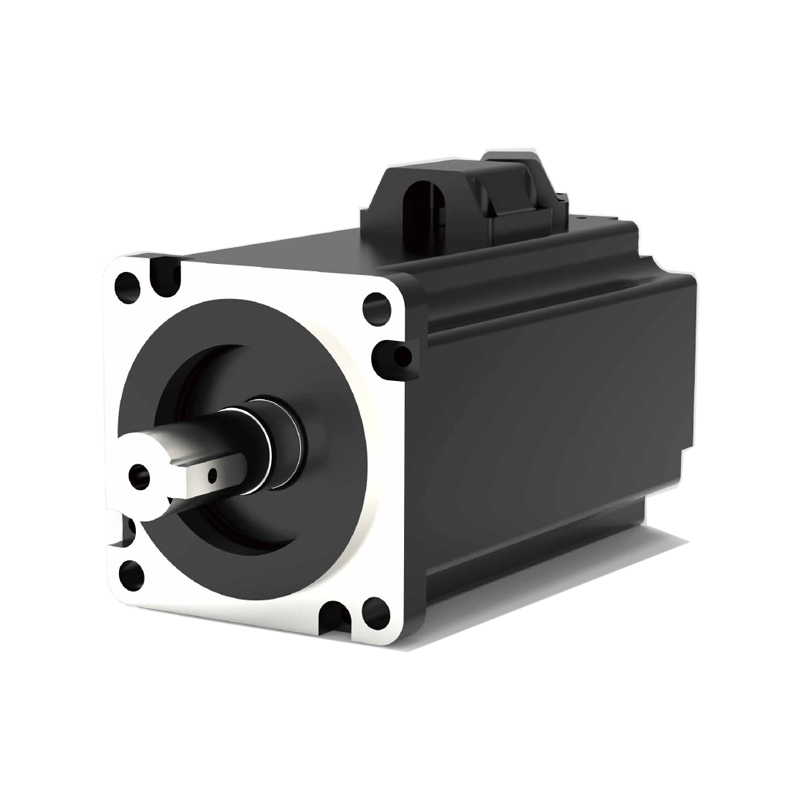

60 Absolute Value Series.jpg
60 Absolute Value Series1.jpg

60 Absolute value Series servo motor

Driver input voltage(V):AC220

Number of encoder wires(P/R):Absolute value17bit

Ambient temperature:-25°C-40°C

Relative humidity:0-90%RH(no condensation)

Number of pole-pairs:5

Insulation class:F

    Contact us
    product details

    Product Overview

    Uncompromising Precision with High-Resolution Feedback
    At the core of the 60 Series lies an advanced 17-bit high-resolution absolute encoder. Unlike incremental encoders, this absolute feedback system instantly retains position data even after a power loss, eliminating the need for homing routines upon startup. This translates directly into superior machining precision, maintaining a consistent accuracy of ±0.01mm throughout long production runs. Whether performing intricate engraving or high-speed cutting, the motor ensures every workpiece meets exact specifications.

    Enhanced Productivity and Reduced Waste
    The exceptional stability of the FUYETO 60 motors directly contributes to your bottom line. By providing smooth torque delivery and precise velocity control, these motors significantly reduce vibrations and positional errors. This high level of control enables a reduction in defect rates by up to 20%, meaning less material waste and higher overall equipment effectiveness (OEE). For manufacturers, this translates to lower production costs and faster return on investment.

    Engineered for Integration and Durability
    Designed as a complete solution, the 60 Series offers a wide selection of models to match various power ratings and mounting requirements, ensuring seamless integration into CNC milling machines, lathes, automated production lines, and robotic cells. Built with high-grade magnetic materials and optimized thermal designs, the motors deliver consistent performance even under continuous load conditions. Their compact form factor allows for installation in space-constrained equipment without sacrificing power.

    Specifications

    Type

    Rated power

    (KW)

    Rated torque

    (N.m)

    Maximum torque

    (N.m)

    Rated speed

    (R/Min)

    Rated current

    (A)

    Rotor inertia

    (Kg.m2)

    Motor mass

    (Kg)

    Motor length

    (L)

    200W-Multi-coilstandard motor

    0.2

    0.64

    1.92

    3000

    1.7

    0.2*10-4

    1

    78.5

    200W-MultiBrake motor

    0.2

    0.64

    1.92

    3000

    1.7

    0.22*10-4

    1.38

    105

    400W-Multi-coilstandard motor

    0.4

    1.27

    3.81

    3000

    2.8

    0.436*10-4

    1.4

    105.5

    400W-MultiBrakemotor

    0.4

    1.27

    3.81

    3000

    2.8

    0.456*10-4

    1.71

    136

    600W-Multi-coilstandard motor

    0.6

    1.91

    5.73

    3000

    3.3

    0.538*10-4

    1.65

    127.5

    600W-Multi Brake motor

    0.6

    1.91

    5.73

    3000

    3.3

    0.558*10-4

    1.94

    153.5

    60X6ST-JC00630LB

    0.2

    0.64

    1.91

    3000

    1.7

    0.38*10-4

    0.38

    75

    60X6ST-JD00630LBZ

    0.2

    0.64

    1.91

    3000

    1.7

    0.28*10-4

    0.38

    105

    60X6ST-JC01330LB

    0.4

    1.27

    3.81

    3000

    2.5

    0.62*10-4

    0.51

    92

    60X6ST-JD01330LBZ

    0.4

    1.27

    3.81

    3000

    2.5

    0.62*10-4

    0.51

    122

    60X6ST-JC01930LB

    0.6

    1.91

    5.73

    3000

    4.1

    0.88*10-4

    0.47

    109

    60X6ST-JD01930LBZ

    0.6

    1.91

    5.73

    3000

    4.1

    0.88*10-4

    0.47

    139

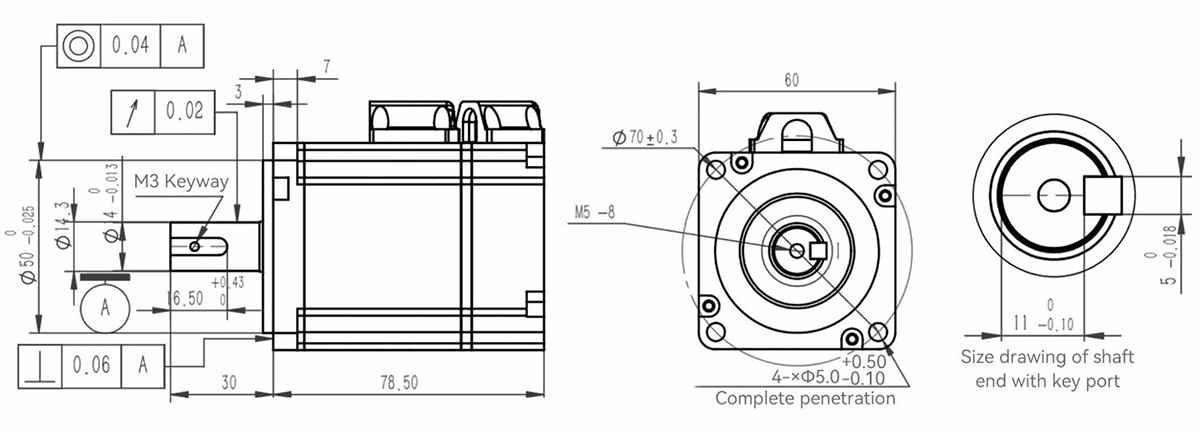

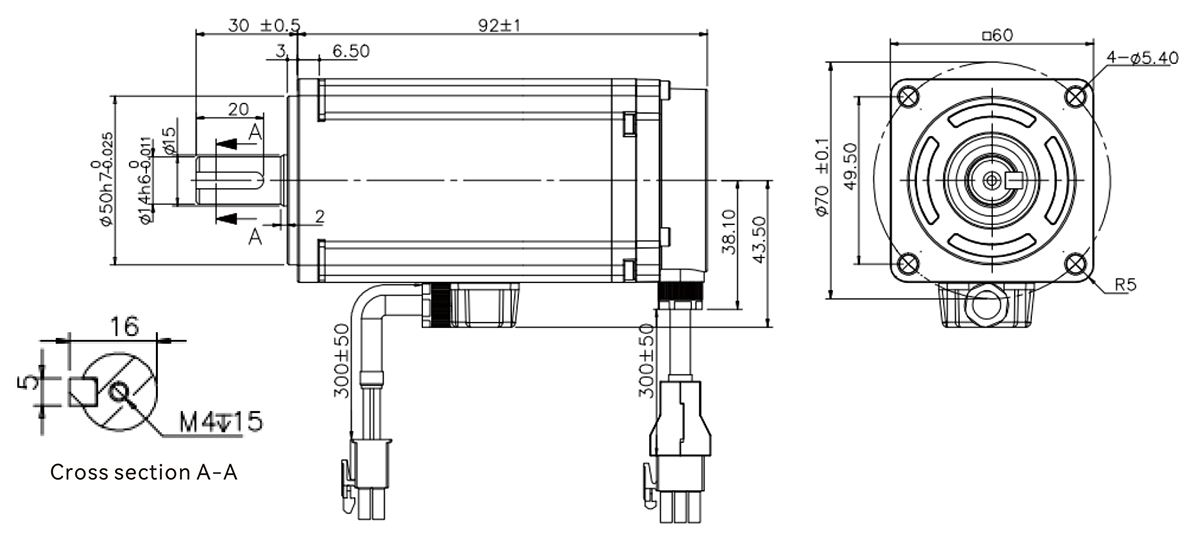

    Product Size

    4
