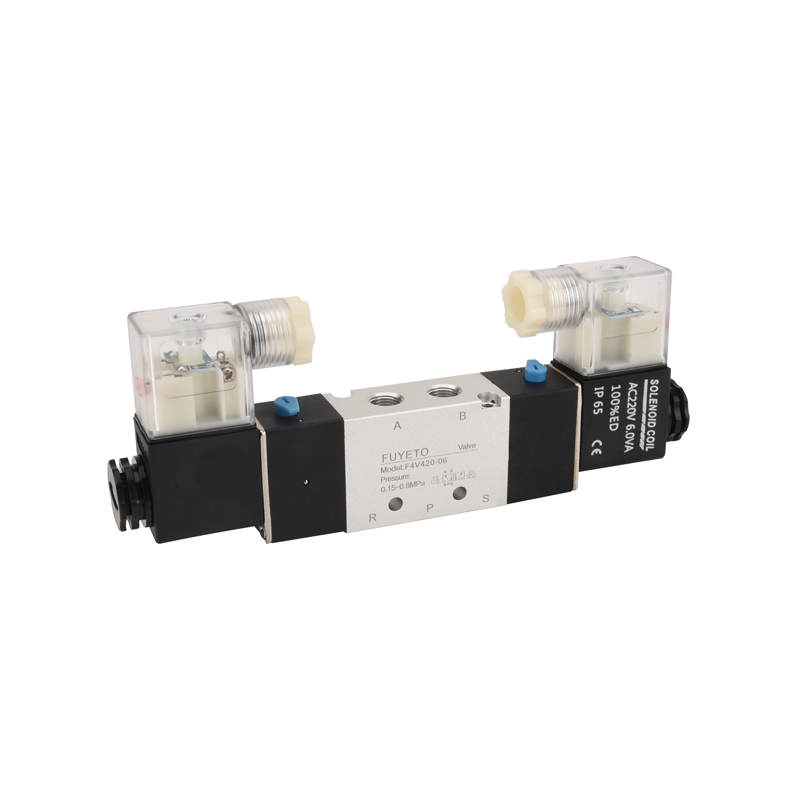

F4V400 Solenoid Valve (Five-Port Two-Position, Five-Port Three-Position)
Symbols
Finished Product Order Code
Specifications
|
Model |
F4V410-15 |
F4V420-15 |
F4V430C-15 |
F4V430E-15 |
F4V430P-15 |
|
Working Medium |
Air (filtered through a Filter Element with a pore size smaller than 40μm) |
||||
|
Action Model |
Internal Guidance Type or External Guidance Type |
||||
|
Pipe Diameter[Note 1] |
Inlet =Outlet=Exhaust=PT1/2 |
||||
|
Effective Cross-sectional Area(Cv) [Note 4] |
F4V410-15,4V420-15:48.0mm²(Cv=2.82);F4V430C-15:40.0mm²(Cv=2.35) |
||||
|
Number of Positions |
Five-port Two-position |
Five-port Three-position |
|||
|
Operating Pressure Range |
0.15~0.8Mpa(21~114psi) |
||||
|
Guaranteed Pressure Resistance |
1.2MPa(175psi) |
||||
|
Operating Temperature |
-20~70℃ |
||||
|
Body Material |
Aluminum Alloy |
||||
|
Lubrication [Note 2] |
Not Required |
||||
|
Maximum Operating Frequency[Note 3] |
3 Times/Second |
||||
|
Weight (g) |
590 |
720 |
770 |
||
Electrical Performance Parameters
|
Items |
Specific Parameters |
||||
|
Standard Voltage |
AC220V |
AC110V |
AC24V |
DC24V |
DC12V |
|
Operating Voltage Range |
AC:±15%；DC:±10% |
||||
|
Power Consumption |
4.5VA |
4.5VA |
5.0VA |
3.0W |
2.5W |
|
Protection Level |
IP65(DIN40050) |
||||
|
Heat Resistance Level |
Class B |
||||
|
Power Connection Type |
DIN Socket Type, Lead-out Type |
||||
|
Excitation Time |
Less than 0.05 Seconds |
||||
Internal Structure
|
No. |
Name |
No. |
Name |
|
|
1 |
Terminal |
7 |
Guide Body |
|
|
2 |
Fixing Nut |
8 |
Body |
|
|
3 |
Coil |
9 |
Wear Ring |
|
|
4 |
Movable Iron |
10 |
Bottom Cover |
|
|
5 |
Fixing Patch |
11 |
Screw |
|
|
6 |
Piston |
12 |
Spring |
|
No. |
Name |
No. |
Name |
|
|
13 |
Exhaust Gasket |
18 |
Manual Pin |
|
|
14 |
O-Ring |
19 |
Return Seat |
|
|
15 |
Shaft Core |
20 |
Spring |
|
|
16 |
Special O-ring |
21 |
Side Cover |
|
|
17 |
Spring |
22 |
Return Seat |

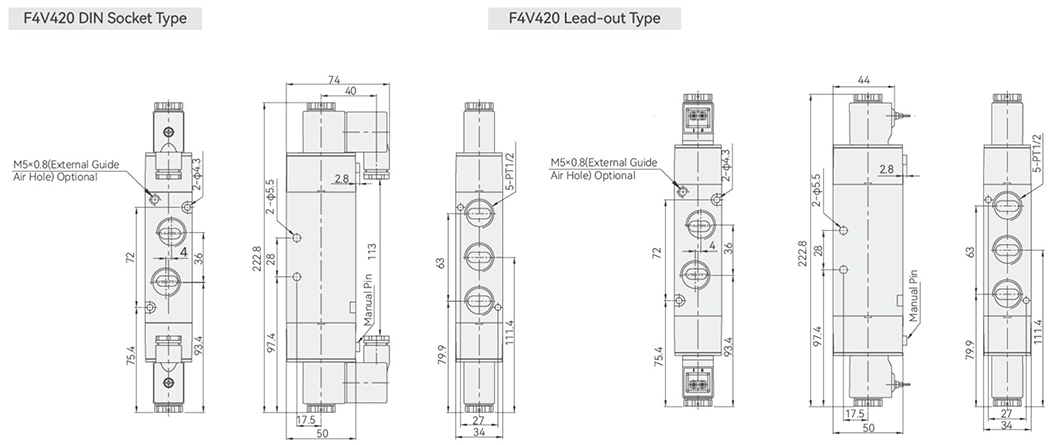

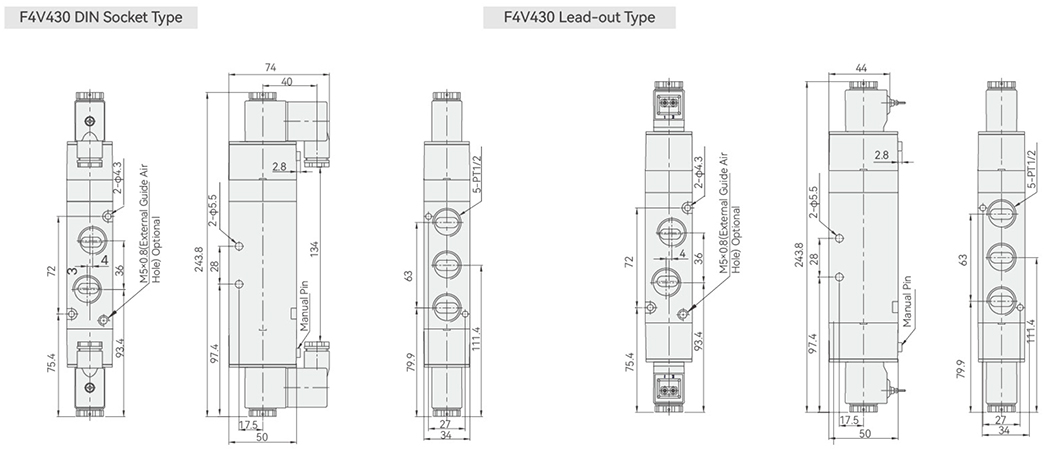

External Specifications
