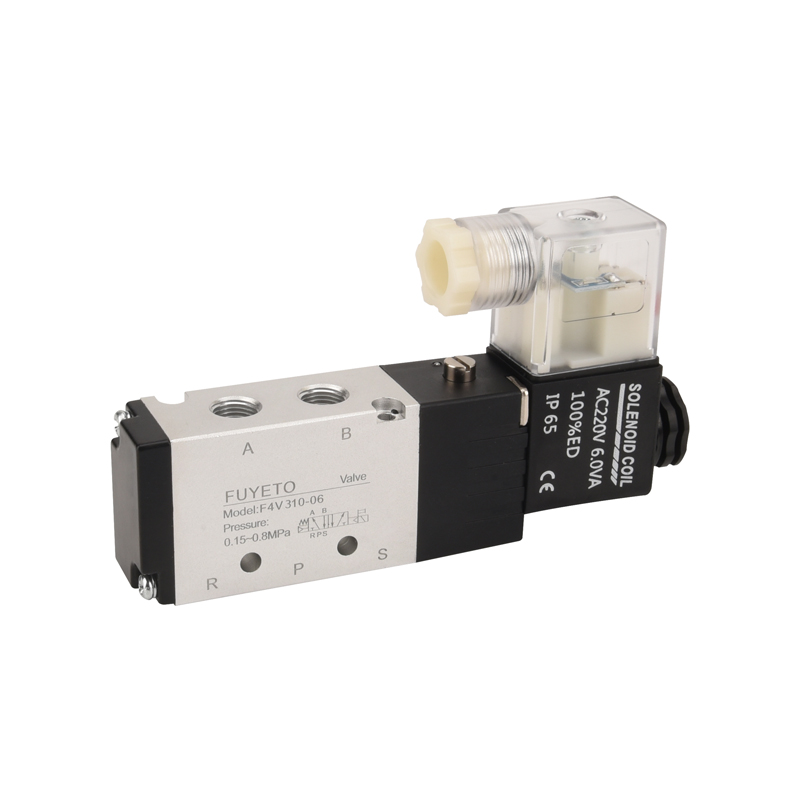

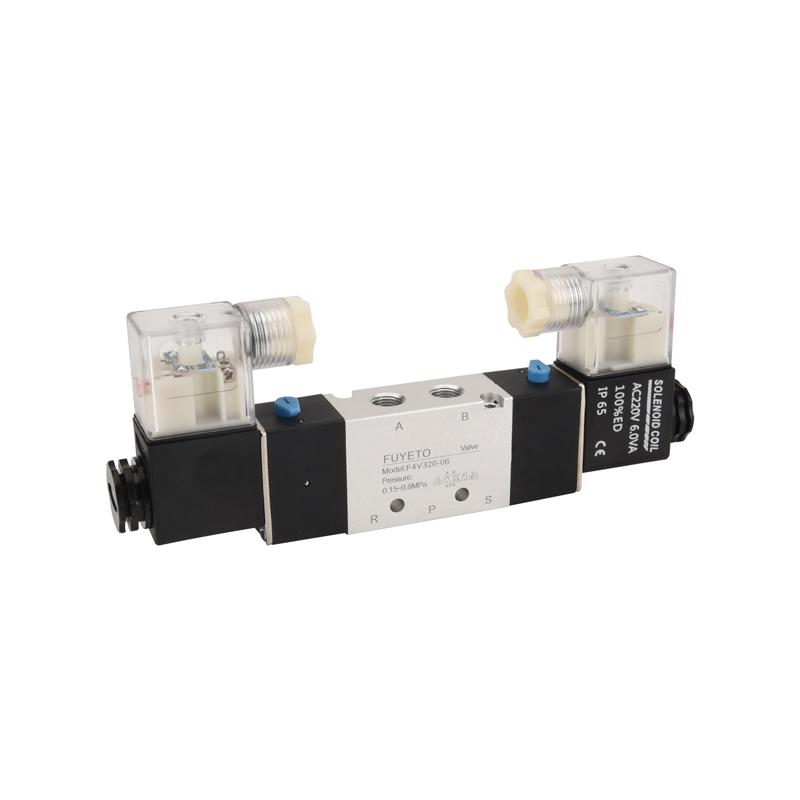

F4V300 Solenoid Valve (Five-Port Two-Position, Five-Port Three-Position)

·Pilot control mode supports flexible selection of built-in or external
·Adopts precision sliding column design, with excellent sealing performance and fast response characteristics
·The three-position solenoid valve provides three functional modes: center pressure relief/center closed/center pressurized
·Double-head two-position solenoid valve equipped with position memory function
·Special inner hole processing technology ensures low friction coefficient, low pressure start-up and ultra-long service life
·Oil-free lubrication design to meet clean environment requirements
·Modular design is compatible with valve group integrated installation to optimize space utilization
·Standard manual operating mechanism, easy for on-site installation and debugging
·Provide multiple standard voltage options (AC/DC optional)

    Contact us
    product details

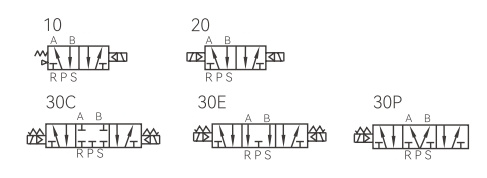

    Symbols

    Symbols

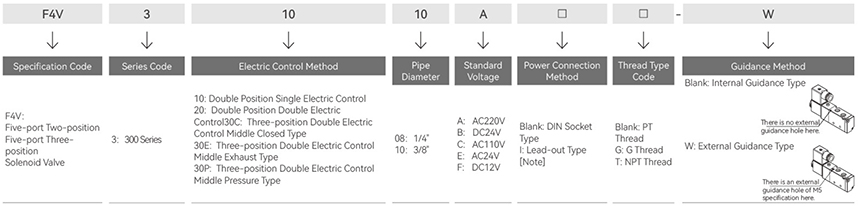

    Finished Product Order Code

    6

    Specifications

    Model

    F4V310-08 F4V320-08

    F4V330C-08 F4V330E-08 F4V330P-08

    F4V310-10 F4V320-10

    F4V330C-10 F4V330E-10 F4V330P-10

    Working Medium

    Air (filtered through a Filter Element with a pore size smaller than 40μm)

    Action Model

    Internal Guidance Type or External Guidance Type

    Pipe Diameter[Note 1]

    Inlet =Outlet=Exhaust=PT1/4

    Inlet =Outlet=PT3/8 Exhaust=PT1/4

    Effective Cross-sectional Area(Cv) [Note 4]

    F4V310-10,F4V320-10:28.0mm²(Cv=1.65);F4V330C-10:21.3mm²(Cv=1.25)

    Number of Positions

    Five-port Two-position

    Five-port Three-position

    Five-port Two-position

    Five-port Three-position

    Operating Pressure Range

    0.15~0.8Mpa(21~114psi)

    Guaranteed Pressure Resistance

    1.2MPa(175psi)

    Operating Temperature

    -20~70℃

    Body Material

    Aluminum Alloy

    Lubrication [Note 2]

    Not Required

    Maximum Operating Frequency[Note 3]

    4 Times/Second

    3 Times/Second

    4Times/Second

    3 Times/Second

    Weight (g)

    F4V310-08:310

    450

    F4V310-08:310

    450

    F4V320-08:400

    F4V320-08:400
    [Note 1] G Thread and NPT Thread are available for Pipe Thread.
    [Note 2] If there is oil lubrication, it cannot be stopped halfway, it is recommended to use IS0 VG32 or equivalent oil.
    [Note 3]The maximum operating frequency is in no-load condition.
    [Note 4l The effective cross-sectional area and Cv value are calculated based on the test flow data.

    Electrical Performance Parameters

    Items

    Specific Parameters

    Standard Voltage

    AC220V

    AC110V

    AC24V

    DC24V

    DC12V

    Operating Voltage Range

    AC:±15%；DC:10%

    Power Consumption

    4.5VA

    4.5VA

    5.0VA

    3.0W

    2.5W

    Protection Level

    IP65(DIN40050)

    Heat Resistance Level

    Class B

    Power Connection Type

    DIN Socket Type, Lead-out Type

    Excitation Time

    Less than 0.05 Seconds

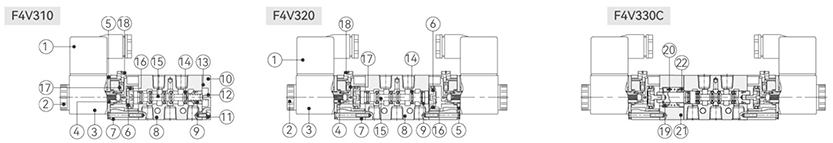

    Internal Structure

    7

    No.

    Name



    No.

    Name

    1

    Terminal



    7

    Guide Body

    2

    Fixing Nut



    8

    Body

    3

    Coil



    9

    Wear Ring

    4

    Movable Iron



    10

    Bottom Cover

    5

    Fixing Patch



    11

    Screw

    6

    Piston

    12

    Spring

    No.

    Name

    No.

    Name

    13

    Exhaust Gasket

    18

    Manual Pin

    14

    O-Ring

    19

    Return Seat

    15

    Shaft Core

    20

    Spring

    16

    Special O-ring

    21

    Side Cover

    17

    Spring

    22

    Return Seat

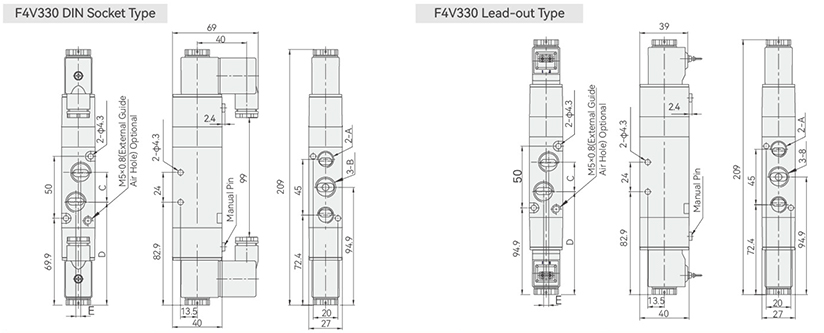

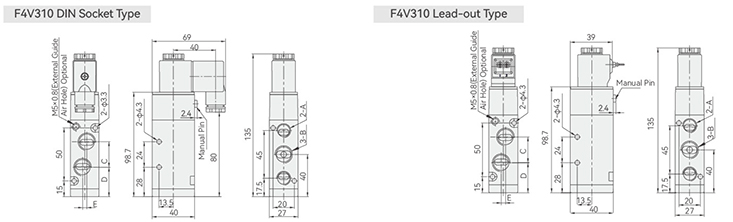

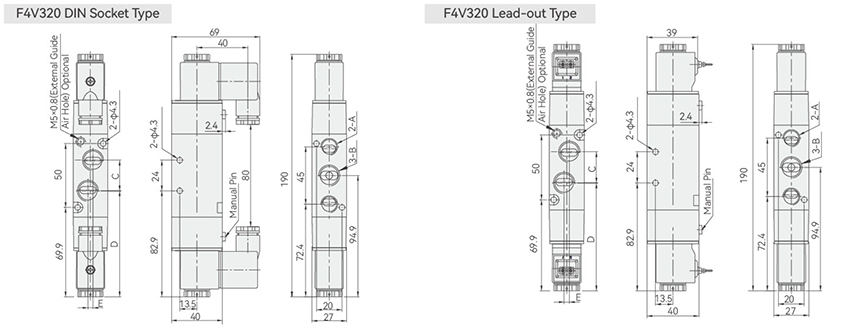

    External Specifications

    8

    Symbols

    A

    B

    C

    D

    E

    F4V310-08

    PT1/4

    PT1/4

    22

    29

    0

    F4V310-10

    PT1/4

    PT1/4

    24

    28

    4
    9

    Symbols

    A

    B

    C

    D

    E

    F4V320-08

    PT1/4

    PT1/4

    22

    83.9

    0

    F4V320-10

    PT1/4

    PT3/8

    24

    82.9

    4
    10

    Symbols

    A

    B

    C

    D

    E

    F4V330-08

    PT1/4

    PT1/4

    22

    83.9

    0

    F4V330-10

    PT1/4

    PT3/8

    24

    82.9

    4
