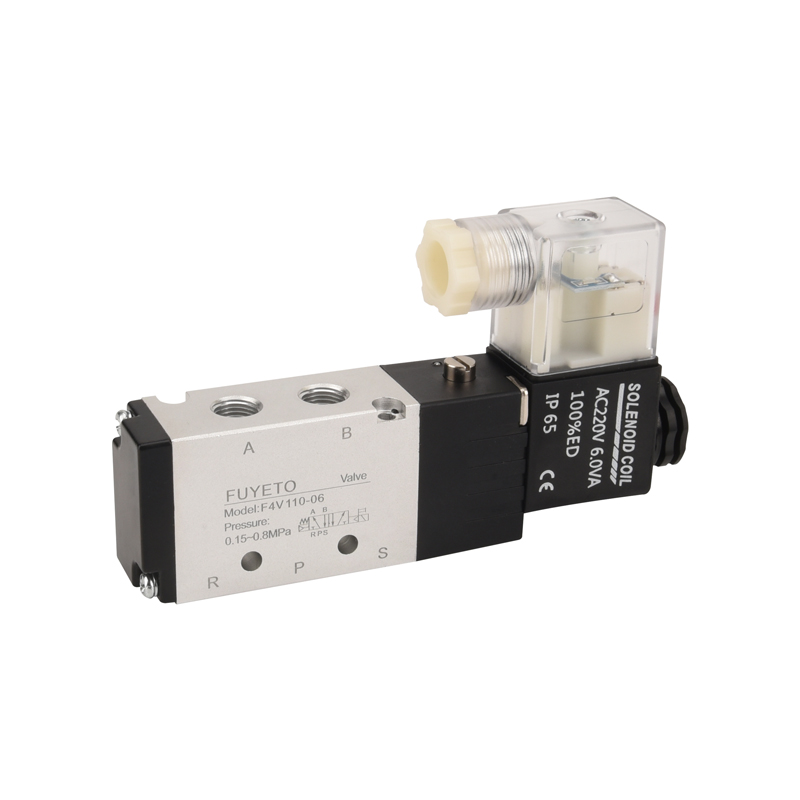

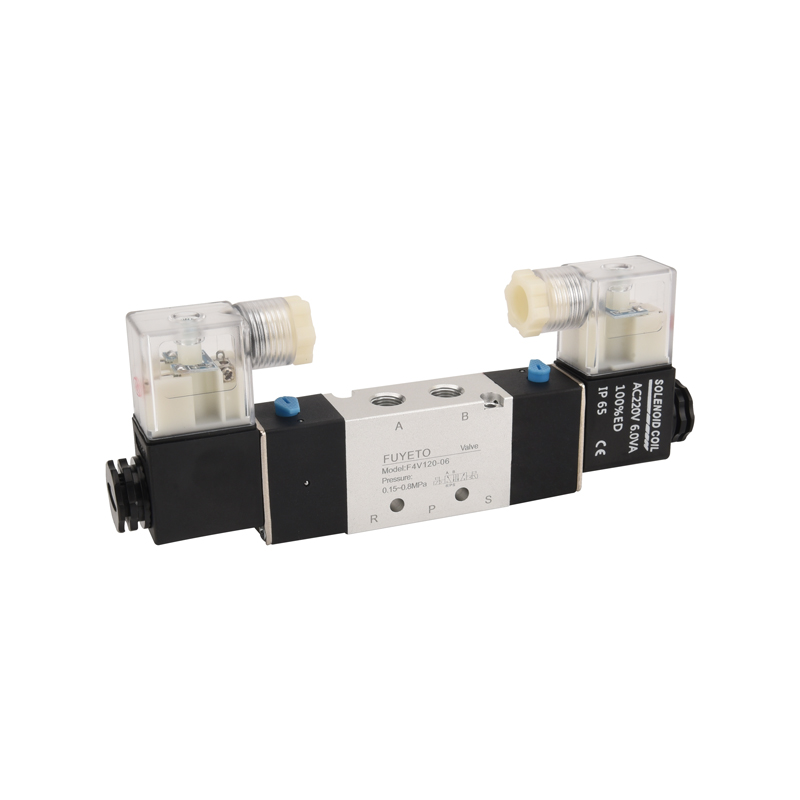

F4V100 Solenoid Valve (Five-Port Two-Position, Five-Port Three-Position)

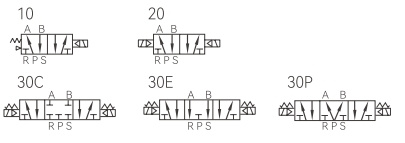

Symbols
Application Scenario
◆Industrial automation equipment: used for controlling pneumatic actuators in machine tools and production lines, such as cylinder drive, workpiece clamping and position adjustment, to achieve precise medium switching and direction change.
◆Packaging and food processing machinery: Control gas flow and pressure in automated packaging lines, suitable for clean environments in the food and beverage industry, to meet oil-free lubrication needs.
◆Automobile manufacturing and maintenance system: integrated into engine test benches and pneumatic tools on assembly lines, responsible for on-off control of fuel or air media to improve production efficiency.
◆Environmental and Energy Engineering: Applied to waste gas treatment equipment, air compressor systems, regulating gas flow to support waste gas and pollution control processes.
◆Chemical and metallurgical industries: used to control the flow of media in corrosive gases or high temperature environments, such as liquid metal cooling or gas supply systems.

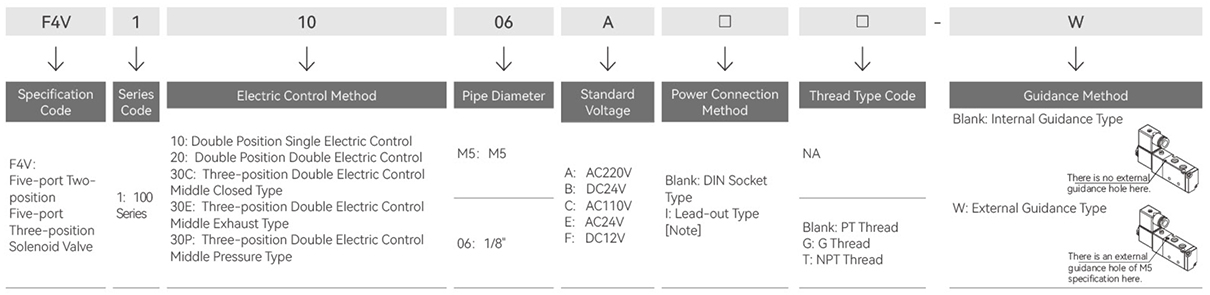

Finished Product Order Code
Specifications
|
Model |
F4V110-M5 F4V120-M5 |
F4v130C-M5 F4V130 E-M5 F4V130 P-M5 |
F4V110-06 F4V120-06 |
F4V130C-06 F4V130E-06 F4V130P-06 |
|
Working Medium |
Air (filtered through a Filter Element with a pore size smaller than 40μm) |
|||
|
Action Model |
Internal Guidance Type or External Guidance Type |
|||
|
Pipe Diameter[Note 1] |
Intake = Exhaust = M5 |
Intake = Exhaust= PT1/8 |
||
|
Effective Cross-sectional Area(Cv) [Note 4] |
F4V110-06,F4V120-06:10.2mm²(Cv=0.6);F4V130C-06:8.6mm²(Cv=0.51) |
|||
|
Number of Positions |
Five-port Two-position |
Five-port Three-position |
Five-port Two-position |
Five-port Three-position |
|
Operating Pressure Range |
0.15~0.8Mpa(21~114psi) |
|||
|
Guaranteed Pressure Resistance |
1.2Mpa(175psi) |
|||
|
Operating Temperature |
-20~70℃ |
|||
|
Body Material |
Aluminum Alloy |
|||
|
Lubrication [Note 2] |
Not Required |
|||
|
Maximum Operating Frequency[Note 3] |
5 Times/Second |
3 Times/Second |
5 Times/Second |
3 Times/Second |
|
Weight (g) |
F4V110-M5:120 F4V110-M5:175 |
200 |
F4V110-06:120 F4V120-06:175 |
200 |
Electrical Performance Parameters
|
Items |
Specific Parameters |
||||
|
Standard Voltage |
AC220V |
AC110V |
AC24V |
DC24V |
DC12V |
|
Operating Voltage Range |
AC:±15%；DC:10% |
||||
|
Power Consumption |
3.5VA |
3.5VA |
4.0VA |
2.8W |
2.5W |
|
Protection Level |
IP65(DIN40050) |
||||
|
Heat Resistance Level |
Class B |
||||
|
Power Connection Type |
DIN Socket Type, Lead-out Type |
||||
|
Excitation Time |
Less than 0.05 Seconds |
||||

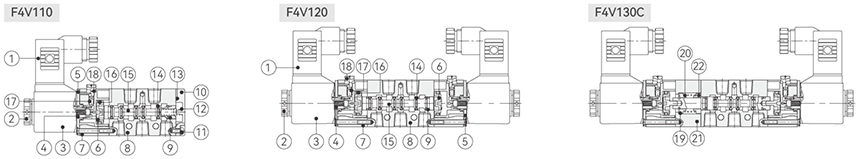

Internal Structure
|
No. |
Name |
No. |
Name |
|
|
1 |
Terminal |
7 |
Guide Body |
|
|
2 |
Fixing Nut |
8 |
Body |
|
|
3 |
Coil |
9 |
Wear Ring |
|
|
4 |
Movable Iron |
10 |
Bottom Cover |
|
|
5 |
Fixing Patch |
11 |
Screw |
|
|
6 |
Piston |
12 |
Spring |
|
No. |
Name |
No. |
Name |
|
|
13 |
Exhaust Gasket |
18 |
Manual Pin |
|
|
14 |
O-Ring |
19 |
Return Seat |
|
|
15 |
Shaft Core |
20 |
Spring |
|
|
16 |
Special O-ring |
21 |
Side Cover |
|
|
17 |
Spring |
22 |
Return Seat |

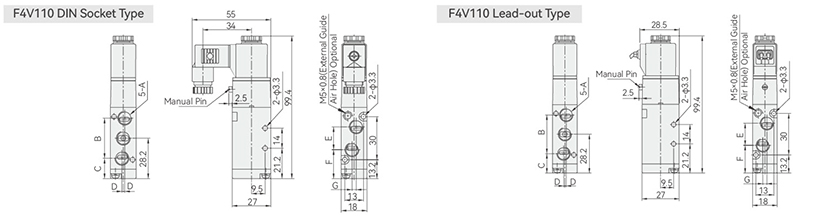

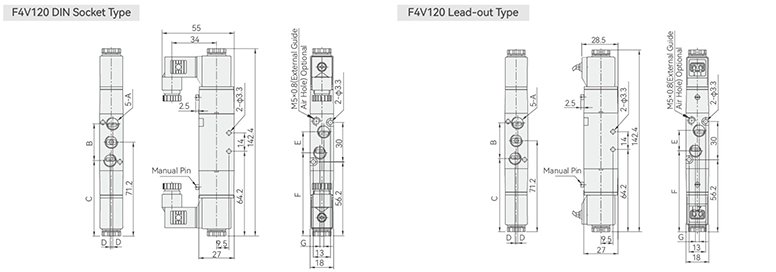

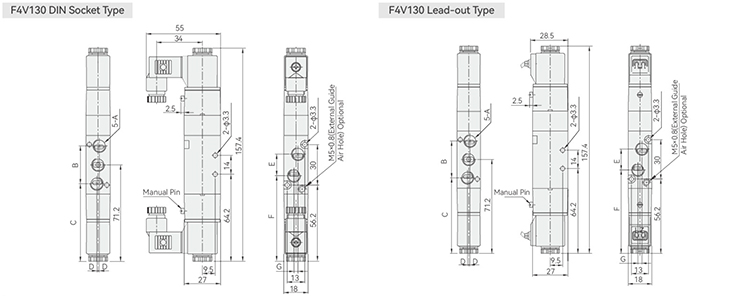

External Specifications
|
Symbols |
A |
B |
C |
D |
E |
F |
G |
|
F4V110-M5 |
M5×0.8 |
27 |
14.7 |
0 |
14 |
21.2 |
0 |
|
F4V110-06 |
PT1/8 |
28 |
14.2 |
1 |
16 |
20.2 |
3 |
|
Symbols |
A |
B |
C |
D |
E |
F |
G |
|
F4V120-M5 |
M5×0.8 |
27 |
57.7 |
0 |
14 |
64.3 |
0 |
|
F4V120-06 |
PT1/8 |
28 |
57.2 |
1 |
16 |
63.2 |
3 |
|
Symbols |
A |
B |
C |
D |
E |
F |
G |
|
F4V130-M5 |
M5×0.8 |
27 |
57.7 |
0 |
14 |
64.3 |
0 |
|
F4V130-06 |
PT1/8 |
28 |
57.2 |
1 |
16 |
63.2 |
3 |
